End-to-End Time Series Forecasting with Amazon SageMaker

Note: The section Putting It All Together links to the GitHub repository containing the complete project source files. You can always return to this guide for a more detailed view of the project components.

Overview

In this post, we will train a times series model to forecast the weekly US finished motor gasoline products supplied (in thousands of barrels per day) from February 1991 to May 2005. This data set is available from the EIA website. The technology stack used in this project includes:

AWS ECR: a cloud-based container registry that makes it easy for us to store and deploy docker images. In this project, we use ECR to store the custom docker images for preprocessing, model training and inference.
Amazon SageMaker: a fully managed service that allows data scientist to build, train, and deploy machine learning (ML) models with AWS cloud. In this project, we use SageMaker as a development environment to train a time series model and deploy the trained model artifacts as an inference endpoint.
AWS Lambda: a server-less compute service that runs our code in response to events and automatically manages the underlying compute resources for us. In this project, we use Lambda to invoke our deployed SageMaker inference endpoint.
Amazon API Gateway: a fully managed service that makes it easy for us to create, publish, maintain, monitor, and secure APIs. In this project, we use API Gateway to create a REST API that will serve as a proxy between the client and the Lambda function, which in turn invokes the SageMaker inference endpoint.

In addition, we use the following tools to facilitate the development and deployment of our project:

Poetry: a tool used for managing dependencies and packaging the source code of the project.
Docker: a tool used for containerizing our applications code. In this project, we use docker to build custom images for model training and inference.
Hydra: an open-source framework for elegantly configuring complex applications. In this project, we use Hydra to manage the configurations— training meta-data, model configurations, compute resource specification, etc. — of our project.

Understanding IAM Roles and Users

Before we dive into the project, it is helpful to first review the concepts of IAM role and user. IAM stands for Identity and Access Management, which is an AWS service that helps us securely control access to AWS resources. In AWS, we often deal with two main types of IAM entities: roles and users. The following table summarizes the key differences between the two:

Feature	IAM User	IAM Role
Definition	An entity that represents a human being working with AWS, typically for long-term access.	An identity with permissions that can be assumed by other entities (users, applications, AWS services).
Primary Use	For regular, direct interaction with AWS services.	For granting specific, temporary permissions for tasks or to AWS services.
Use Case in this Project	Represents individual team members (i.e., ourselves) working on the forecasting project, allowing them to access and manage AWS resources directly.	SageMaker Execution Role: Grants SageMaker permissions to access S3, manage EC2 instances, interact with ECR, etc. Lambda Execution Role: Allows Lambda to invoke SageMaker endpoint that hosts the trained models.
Policy Management	Permissions are generally managed through AWS managed policies or custom in-line policies directly attached to the user.	Roles are associated with AWS managed policies or custom in-line policies that define the permissions for the services assuming the role.

Think of IAM users as our personal access points to AWS - they’re like our ID badges. On the other hand, IAM roles are more like keys that anyone (or any AWS service) can use to perform specific tasks, but only as needed.

Setting Up AWS Resources

To get started with the end-to-end project, we need to create the following resources in our AWS account:

An ECR private repository to store the docker images for model training and inference. More details on how to create an ECR repository can be found in the official documentation. In this project, we create a private repository named ml-sagemaker.

An S3 bucket to store the training and test data as well as the trained model artifacts. See the official documentation on creating S3 buckets. For this project, we create a bucket named yang-ml-sagemaker and a project key forecast-project.

We can create all the above resources as the IAM user with the AdministratorAccess managed policy attached (i.e., not the default root user). Follow the official documentation to create such an administrative user. The administrator user has full access to all AWS services and resources in the account.

As of 2023, AWS recommends managing access and resource provisioning centrally using the IAM Identity Center. While it is still possible to manage access using traditional IAM methods (i.e., with long-term credentials), current AWS documentation encourages transitioning to IAM Identity Center for improved security and efficiency.

The steps in this guide are applicable regardless of whether we are using the traditional IAM method or the IAM Identity Center. As long as we have a user— either traditional IAM or Identity Center— with the necessary permissions, the outlined steps can be followed.

For simplicity, though it violates the principle of least privilege, all subsequent resources can be provisioned using an administrator-level user. However, it’s important to remain vigilant about IAM and resource access management best practices, particularly in enterprise environments where security and access control are critical.

IAM User with Minimal Set of Permissions

In order to perform the actions— training, hosting, and deployment— required in this project, we need to create an IAM user and attach a policy with the following permissions: AmazonSageMakerFullAccess.

This is an AWS managed policy that provides full access to SageMaker via the AWS Management Console and SDK. It provides selected access to related services (e.g., S3, ECR, AWS CloudWatch Logs). The IAM user can be created from the IAM console of the administrative user. In the screen shot below:

The name of the IAM user is forecast-project-user
The name of the AWS managed policy is SageMakerFullAccess

We should also enable console access for this IAM user, so that we can login and manage our project resources from the AWS console. This can be done from the IAM console of the administrative user under the “Security credentials” tab.

Lambda Execution Role

A Lambda function’s execution role is an IAM role that allows a Lambda function to interact with other AWS services and resources. This role can be created via the IAM console by the administrative user. For this project, we need Lambda to integrate with two other AWS services:

SageMaker: to invoke the endpoint hosting the trained model
CloudWatch: to log the Lambda function’s execution for monitoring and troubleshooting

We make a resource restriction using the prefix forecast-, ensuring that the Lambda function can only invoke the endpoint hosting the trained model for this project. To set up this execution role, we follow a two-step process:

Create an in-line policy called forecast-lambda-policy (link) with the following permission, substituting for YOUR-AWS-ACOUNT-NUMBER or replacing it with the wildcard *:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "InvokeSageMakerEnpoint",
            "Effect": "Allow",
            "Action": [
                "sagemaker:InvokeEndpoint"
            ],
            "Resource": "arn:aws:sagemaker:*:YOUR-AWS-ACOUNT-NUMBER:endpoint/forecast-*"
        },
        {
            "Sid": "CloudWatch",
            "Effect": "Allow",
            "Action": [
                "logs:CreateLogGroup",
                "logs:CreateLogStream",
                "logs:PutLogEvents"
            ],
            "Resource": "*"
        }
    ]
}

Create the execution role called forecast-lambda-execution-role with the above policy attached:

SageMaker Execution Role

Before moving on to creating the SageMaker notebook instance, we also need to create an IAM role for SageMaker to use. This role is used to give SageMaker training jobs, notebook instances, and models access to other AWS services, such as S3, CloudWatch, and ECR.

This execution role is also important as we will be creating our lambda function and REST API within the SageMaker notebook instance; therefore, we need additional permissions beyond the scope of AmazonSageMakerFullAccess. Similar to the execution role for Lambda, this IAM role can also be created from the IAM console of the administrative user.

Create an in-line policy called forecast-sagemaker-policy (link) with the following permissions, substituting for YOUR-AWS-ACOUNT-NUMBER or replacing it with the wildcard *:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "ECRPermissions",
            "Effect": "Allow",
            "Action": [
                "ecr:BatchGetImage",
                "ecr:BatchDeleteImage",
                "ecr:ListImages"
            ],
            "Resource": "arn:aws:ecr:*:YOUR-AWS-ACOUNT-NUMBER:repository/YOUR-ECR-REPOSITORY"
        },
        {
            "Sid": "ReadOnlyPermissions",
            "Effect": "Allow",
            "Action": [
                "lambda:GetAccountSettings",
                "lambda:GetEventSourceMapping",
                "lambda:GetFunction",
                "lambda:GetFunctionConfiguration",
                "lambda:GetFunctionCodeSigningConfig",
                "lambda:GetFunctionConcurrency",
                "lambda:ListEventSourceMappings",
                "lambda:ListFunctions",
                "lambda:ListTags",
                "iam:ListRoles"
            ],
            "Resource": "*"
        },
        {
            "Sid": "DevelopFunctions",
            "Effect": "Allow",
            "NotAction": [
                "lambda:PutFunctionConcurrency"
            ],
            "Resource": "arn:aws:lambda:*:YOUR-AWS-ACOUNT-NUMBER:function:forecast-*"
        },
        {
            "Sid": "PassExecutionRole",
            "Effect": "Allow",
            "Action": [
                "iam:ListRolePolicies",
                "iam:ListAttachedRolePolicies",
                "iam:GetRole",
                "iam:GetRolePolicy",
                "iam:PassRole",
                "iam:SimulatePrincipalPolicy"
            ],
            "Resource": "arn:aws:iam::YOUR-AWS-ACOUNT-NUMBER:role/forecast-lambda-execution-role"
        },
        {
            "Sid": "ViewLogs",
            "Effect": "Allow",
            "Action": [
                "logs:*"
            ],
            "Resource": "arn:aws:logs:*:YOUR-AWS-ACOUNT-NUMBER:log-group:/aws/lambda/forecast-*"
        },
        {
            "Sid": "ConfigureFunctions",
            "Effect": "Allow",
            "Action": [
                "lambda:CreateFunction",
                "lambda:DeleteFunction",
                "lambda:UpdateFunctionCode",
                "lambda:UpdateFunctionConfiguration",
                "lambda:InvokeFunction"
            ],
            "Resource": "arn:aws:lambda:*:YOUR-AWS-ACOUNT-NUMBER:*:*"
        },
        {
            "Sid": "ManageAPIGateway",
            "Effect": "Allow",
            "Action": [
                "apigateway:POST",
                "apigateway:GET",
                "apigateway:PUT",
                "apigateway:DELETE"
            ],
            "Resource": [
                "arn:aws:apigateway:*::/restapis",
                "arn:aws:apigateway:*::/restapis/*",
                "arn:aws:apigateway:*::/apikeys",
                "arn:aws:apigateway:*::/apikeys/*",
                "arn:aws:apigateway:*::/usageplans",
                "arn:aws:apigateway:*::/usageplans/*",
                "arn:aws:apigateway:*::/usageplans/*/*"
            ]
        },
        {
            "Sid": "InvokeAPIGateway",
            "Effect": "Allow",
            "Action": [
                "execute-api:Invoke"
            ],
            "Resource": "arn:aws:execute-api:*:YOUR-AWS-ACOUNT-NUMBER:*/*/POST/*"
        }
    ]
}

Here is a breakdown of the permissions in the above policy:

ECRPermissions: Allows managing images in an ECR repository named ml-sagemaker, including getting, deleting, and listing images. This should be modified to the ECR repository created in the previous section.
ReadOnlyPermissions: Grants read-only access to various Lambda-related actions, including viewing function details and listing functions and roles.
DevelopFunctions: Provides broader permissions for Lambda functions prefixed with forecast-, except for changing function concurrency settings. (Notice the use of NotAction).
PassExecutionRole: Enables passing a specific IAM role (forecast-lambda-execution-role) to AWS services for executing functions.
ViewLogs: Grants full access to logs associated with Lambda functions starting with forecast-.
ConfigureFunctions: Provides permissions to create, delete, update, and invoke Lambda functions across all regions for the specified AWS account.
ManageAPIGateway: Allows managing REST APIs in API Gateway, including CRUD operations on APIs.
InvokeAPIGateway: Grants permission to invoke POST methods on API Gateway endpoints.

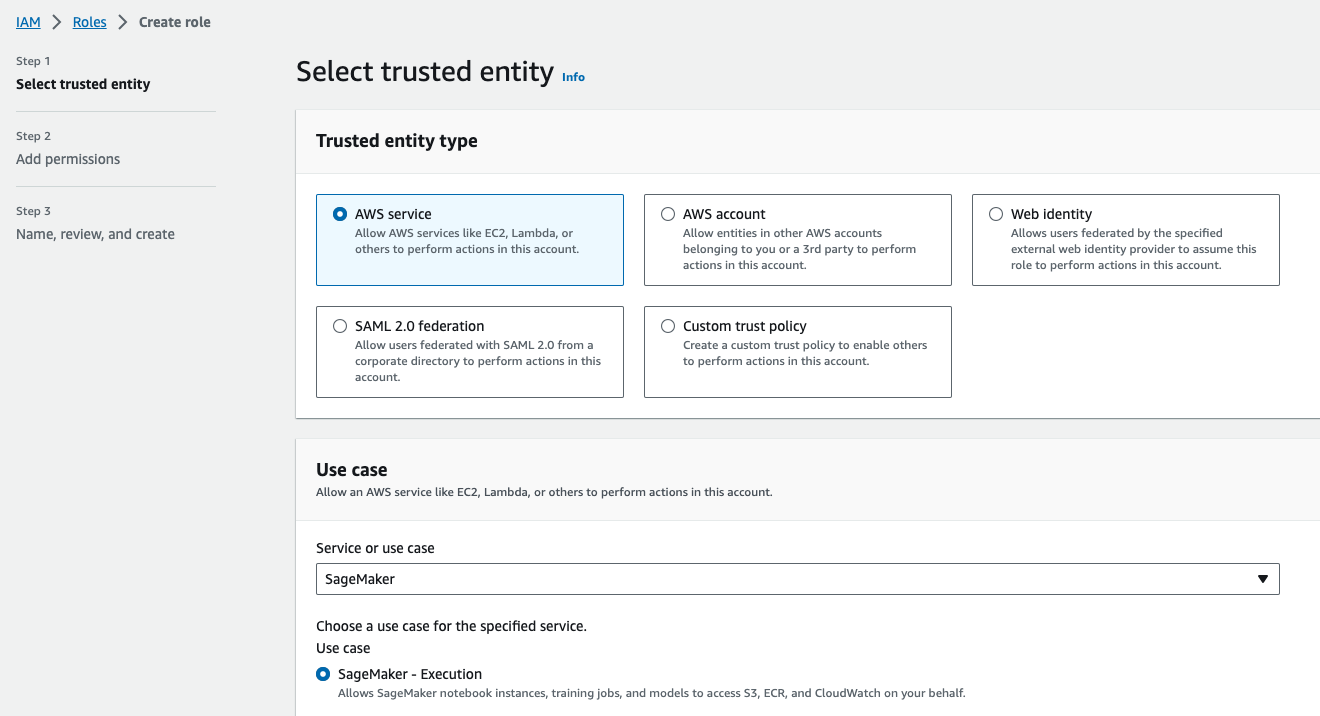

Create the execution role called forecast-sagemaker-execution-role with two policies attached:

The first policy is the AWS managed policy AmazonSageMakerFullAccess
The second policy is the in-line policy created above

We will need to reference this execution role when creating the SageMaker notebook instance below.

Optional: Lifecycle Configuration Script & Secret for Github

Optionally, we can enhance our SageMaker notebook instance with a lifecycle configuration script. This script runs both at the creation of the notebook instance and each time it starts, allowing us to install extra libraries and packages beyond the default setup. We can even configure an IDE like VSCode in the notebook instance. For guidance on setting up VSCode, check out my previous post.

Additionally, linking our SageMaker notebook to a Git repository (either public or private) is possible and beneficial for version control and collaboration. For private repositories, we’ll need to create a personal access token and store it in AWS Secrets Manager. This token is then used to establish a secure connection to the repository. Detailed steps can be found in the SageMaker documentation.

SageMaker Notebook Instance

For connecting with a Github repo, if we did not create a PAT and store it with Secret Manager in the previous step, we would either have to log back in and create the secret with the administrative user or grant permissions to do so to the forecast-project-user IAM user. If we did create a PAT and stored it with Secret Manager, we can first create a github repo for the project:

Once the github repo is created, we create a SageMaker notebook instance from the SageMaker console of the forecast-project-user IAM user. The notebook instance is used as our primary development environment for model training and inference.

As for the instance type, we can choose ml.t3.medium, which comes with 2 vCPU’s and 4 GiB of memory at $\$0.05$ per hour on-demand. The instance type can be changed later if needed, but it is recommend to start small with any development instances and utilize and processing and training jobs with more compute for actual workloads. For more details on pricing, refer to the SageMaker pricing page.

For this project, we will connect to Github from within the notebook instance; this is because we will be creating a project directory from scratch.

Setting Up Project in the SageMaker Notebook Instance

Every SageMaker notebook instance comes equipped with a dedicated storage volume. To set up our project, we will begin by creating a shell script within this storage. From this point on, you could either use JupyerLab (provided by SageMaker) or VSCode, which we optionally installed via the lifecycle configuration above.

Open the terminal, navigate to the SageMaker directory, and create a shell script:

$ cd /home/ec2-user/SageMaker
# You can use any text editor of your choice
$ nano create_project.sh

Copy and paste the following commands into the script:

#!/bin/bash

# Install Poetry outside of the environment it manages
curl -sSL https://install.python-poetry.org | python3 -
# Add the Poetry bin directory to the PATH
export PATH="$HOME/.local/bin:$PATH"

# Create and activate the conda environment
source ~/anaconda3/etc/profile.d/conda.sh
conda create -n forecast-project-env python=3.10 -y
conda activate forecast-project-env

# Use Poetry to create a new project with directories src and tests and a pyproject.toml file
poetry new forecast-project --name src

# Use sed to update the Python version constraint in pyproject.toml
cd forecast-project
sed --in-place 's/python = "^3.10"/python = ">=3.10, <3.12"/' pyproject.toml
# Rename the project from "src" to "forecast-project"
sed --in-place 's/name = "src"/name = "forecast-project"/' pyproject.toml
# Remove the lines version, description, and authors under [tool.poetry]
sed --in-place '/^version = /d' pyproject.toml
sed --in-place '/^description = /d' pyproject.toml
sed --in-place '/^authors = /d' pyproject.toml
# Add `package-mode = false` under `[tool.poetry]`
sed --in-place '/\[tool.poetry\]/a package-mode = false' pyproject.toml

# Install project, test, and notebook dependencies using Poetry
poetry add "pandas[performance]==1.5.3" "hydra-core==1.3.2" "boto3==1.26.131" \
           "pmdarima==2.0.4" "sktime==0.24.0" "statsmodels==0.14.0" "statsforecast==1.4.0" \
           "xlrd==2.0.1" "fastapi==0.104.1" "joblib==1.3.2" "uvicorn==0.24.0.post1"
poetry add "pytest==7.4.2" --group test
poetry add "ipykernel==6.25.2" "ipython==8.15.0" "kaleido==0.2.1" "matplotlib==3.8.0" --group notebook

# Install all dependencies specified in pyproject.toml
poetry install

The script above accomplishes the following:

Installs Poetry outside of the environment it manages
Creates and activates the forecast-project-env conda environment
Creates a poetry-managed project named forecast-project
Installs dependencies into separate groups:
- Packages used for training
- Packages used for testing
- Packages used in the jupyter notebook for interactive development

We employ exact versioning (==) for all dependencies. This approach isn’t about futureproofing the package. Instead, the objective of packaging the training code is to firmly lock in the set of dependencies that have proven to work, ensuring consistency during testing, training, and notebook usage.

Modifies the Python version constraint in pyproject.toml
Adds package-mode = false under [tool.poetry] to use Poetry for managing the project’s dependencies only
Installs all dependencies specified in the pyproject.toml file

Run the script:

$ bash create_project.sh

The pyproject.toml file should resemble:

[tool.poetry]
package-mode = false
name = "forecast-project"
readme = "README.md"

[tool.poetry.dependencies]
python = ">=3.10, <3.12"
pandas = {version = "1.5.3", extras = ["performance"]}
hydra-core = "1.3.2"
boto3 = "1.26.131"
pmdarima = "2.0.4"
sktime = "0.24.0"
statsmodels = "0.14.0"
statsforecast = "1.4.0"
xlrd = "2.0.1"
fastapi = "0.104.1"
joblib = "1.3.2"
uvicorn = "0.24.0.post1"

[tool.poetry.group.test.dependencies]
pytest = "7.4.2"

[tool.poetry.group.notebook.dependencies]
ipykernel = "6.25.2"
ipython = "8.15.0"
kaleido = "0.2.1"
matplotlib = "3.8.0"

[build-system]
requires = ["poetry-core"]
build-backend = "poetry.core.masonry.api"

To enable version control the project, refer to the following section of my previous post.

Hydra Configuration

Thus far, we’ve established several AWS resources, including an S3 bucket and a SageMaker notebook. As our project becomes more intricate, it can be challenging to keep track of all these resources, especially elements like names (such as user name, project S3 key, S3 bucket name, etc.) and paths (like the project directory and its subdirectories). This issue becomes even more critical as we start developing our training and inference logic, which come with their own configuration requirements.

To tackle this challenge, we’ll employ Hydra for managing our project’s configurations. Instead of hardcoding configurations directly into scripts or notebooks, which can be prone to errors when changes occur frequently during development, Hydra allows us to store configurations in a structured and organized manner.

Create a config directory and a main.yaml file in the src directory:

$ cd forecast-project
$ mkdir src/config && touch src/config/main.yaml

The main.yaml file functions as the central hub for all configurations, serving as the primary reference point for a wide range of project settings. These settings encompass paths, AWS resources and names, meta data, raw data url, and more. Edit the main.yaml file and add the following:

# AWS config
s3_bucket: YOUR-S3-BUCKET
s3_key: YOUR-PROJECT-KEY
ecr_repository: YOUR-ECR-REPOSITORY
model_dir: /opt/ml/model
output_path: s3://YOUR-S3-BUCKET/YOUR-PROJECT-KEY/models
code_location: s3://YOUR-S3-BUCKET/YOUR-PROJECT-KEY/code
volume_size: 30
# File system
project_dir_path: /home/ec2-user/SageMaker/YOUR-PROJECT-KEY
src_dir_path: /home/ec2-user/SageMaker/YOUR-PROJECT-KEY/src
notebook_dir_path: /home/ec2-user/SageMaker/YOUR-PROJECT-KEY/notebooks
docker_dir_path: /home/ec2-user/SageMaker/YOUR-PROJECT-KEY/docker
# Meta data for ingestion and uploading to s3
raw_data_url: https://www.eia.gov/dnav/pet/hist_xls/WGFUPUS2w.xls

# Meta data
freq: W-FRI
m: 52.18
forecast_horizon: 26 # Forecast horizon 26 weeks or ~ 6 months
max_k: 10 # Maximum number of fourier terms to consider
cv_window_size: 417 # Selected to ensure 100 train-val splits
test_window_size: 512 # Selected to test only 5 train-val splits
step_length: 1 # Step size for rolling window
conf: 0.95 # Confidence level for prediction intervals

# Processing job configuration
preprocess_base_job_name: processing-job
preprocess_input: /opt/ml/processing/input
preprocess_output: /opt/ml/processing/output
preprocess_instance_count: 1
preprocess_instance_type: ml.t3.medium
preprocess_entry_point: preprocess_entry.py
preprocess_counterfactual_start_date: '2013-01-01'

# Training job configuration
train_base_job_name: training-job
train_instance_count: 1
train_instance_type: ml.m5.xlarge
train_entry_point: train_entry.py

# Hyperparameter optimization
base_tuning_job_name: tuning-job
max_jobs: 20
max_parallel_jobs: 10
objective_type: Minimize
objective_metric_name: 'MSE'
strategy: Bayesian

# Spot training
use_spot_instances: true
max_run: 86400
max_wait: 86400 # This should be set to be equal to or greater than max_run
max_retry_attempts: 2
checkpoint_s3_uri: s3://YOUR-S3-BUCKET/YOUR-PROJECT-KEY/checkpoints

# Serving configuration
serve_model_name: forecast-model
serve_memory_size_in_mb: 1024  # 1GB increments: 1024 MB, 2048 MB, 3072 MB, 4096 MB, 5120 MB, or 6144 MB
serve_max_concurrency: 5 # Maximum number of concurrent invocation the serverless endpoint can process
serve_initial_instance_count: 1
serve_instance_type: ml.t3.medium
serve_endpoint_name: forecast-endpoint
serve_volume_size: 10

# Lambda
lambda_source_file: lambda_function.py
lambda_function_name: forecast-lambda
lambda_handler_name: lambda_function.lambda_handler
lambda_execution_role_name: forecast-lambda-execution-role
lambda_python_runtime: python3.10
lambda_function_description: Lambda function for forecasting gas product
lambda_time_out: 30
lambda_publish: true
lambda_env_vars:
  - SAGEMAKER_SERVERLESS_ENDPOINT: forecast-endpoint

# API Gateway
api_gateway_api_name: forecast-api
api_gateway_api_base_path: forecast
api_gateway_api_stage: dev
api_gateway_api_key_required: true
api_gateway_api_key_name: forecast-api-key
api_gateway_enabled: true # Caller can use this API key
api_gateway_usage_plan_name: forecast-api-usage-plan

defaults:
  - _self_

This yaml file can be adapted to fit the needs of different projects. Make sure that the placeholders— YOUR-S3-BUCKET, YOUR-PROJECT-KEY, and YOUR-ECR-REPOSITORY are replaced with appropriate values.

Checkpoint I

At this juncture, the project directory should resemble:

.
├── poetry.lock
├── pyproject.toml
├── README.md
├── src
│   ├── config
│   │   └── main.yaml
│   └── __init__.py
└── tests
    └── __init__.py

Exploratory Data Analysis

Create a notebooks directory in the root directory of the project, then create a notebook named eda.ipynb inside the notebooks directory:

$ mkdir notebooks && cd notebooks && touch eda.ipynb

The code blocks of the following sub-sections are all assumed to be executed inside the eda.ipynb notebook. Note: the kernel of the notebook should be set to the conda environment, python3, in which we installed our project dependencies.

Hydra

To set up Hydra for the notebook, all we need to do is initializing it with a configuration path relative to the caller’s current working directory. In this case, the caller is the eda.ipynb notebook, and the configuration path is ../src/config. We’ll also need to specify the version base and job name for the notebook. Lastly, we’ll convert the Hydra configuration to a dictionary for easy access:

core.global_hydra.GlobalHydra.instance().clear()
initialize(version_base='1.2', config_path='../src/config', job_name='eda')
config = OmegaConf.to_container(compose(config_name='main'), resolve=True)

Data

To download the raw data from the Energy Information Administration website to the current working directory (i.e. notebooks):

!wget -q {config['raw_data_url']} -O gas_data.xls

Read in the excel file:

gas_data = pd.read_excel(
    'gas_data.xls',
    sheet_name='Data 1',
    header=2, # The column names start on the 3rd row
    dtype={'Date': np.datetime64},
    index_col='Date'
)

gas_data.columns = ['gas_product']

gas_data.shape

(1707, 1)

Check for missing values and duplicate values:

assert gas_data['gas_product'].isna().sum() == 0
assert gas_data.index.duplicated(keep=False).sum() == 0

In this project, we will try to forecast the next 6 months of gas products, which means that the last $\sim6$ months (or $\sim26$ weeks) of data will become the test set. All EDA steps will be conducted on the training set. The forecast horizon we choose here is arbitrary, and can be changed in the configuration file.

train, test = pm.model_selection.train_test_split(gas_data, test_size=config['forecast_horizon'])
print(f'The training period is {train.index.min().strftime("%Y-%m-%d")} to {train.index.max().strftime("%Y-%m-%d")}')
print(f'The test period is {test.index.min().strftime("%Y-%m-%d")} to {test.index.max().strftime("%Y-%m-%d")}')

The training period is 1991-02-08 to 2023-04-21
The test period is 2023-04-28 to 2023-10-20

Fundamental Questions in Time Series Analysis

To gain a comprehensive understanding of our time series data, we start by addressing two fundamental questions:

Is the time series stationary? From the book “Time Series Analysis with Applications in R” by Jonathan D. Cryer and Kung-Sik Chan (page 16):

To make statistical inferences about the structure of a stochastic process on the basis of an observed record of that process, we must usually make some simplifying (and presumably reasonable) assumptions about that structure. The most important such assumption is that of stationarity. The basic idea of stationarity is that the probability laws that govern the behavior of the process do not change over time. In a sense, the process is in statistical equilibrium. Specifically, a process ${Y_t}$ is said to be strictly stationary if the joint distribution of $Y_{t_1}, Y_{t_2},..., Y_{t_n}$ is the same as the joint distribution of $Y_{t_{1}– k}, Y_{t_{2}– k},..., Y_{t_a{n}– k}$ for all choices of time points $t_1, t_2,..., t_n$ and all choices of time lag k.

In practice, we usually answer the question of stationarity using the weak definition. That is, a time series $Y_{t}$ is weakly stationary if
1. The mean function is constant over time
2. $\gamma_{t, t-k}=\gamma_{0, k} \quad$ for all time $t$ and lag $k$
Is the time series a white noise (i.e., a sequence of independent, identically distributed random variables)? The white noise is an example of a stationary process; most importantly, if the data is confirmed to be white noise, we cannot reasonably forecast such time series.

Time Plot, ACF, & PACF

To answer the above questions, we rely on three essential plots:

Time Plot: this is simply the time series (y-axis) over time (x-axis). Things to look for in this plot are:
- What is the baseline (grand mean) of the series over the sampling period?
- Is there a trend (i.e. positive or negative slope) over time?
- Is there a noticeable (and consistent) seasonal pattern in the time series? There is a subtle difference between seasonal and any cyclical patterns; the latter do not have to be consistent. In other words, seasonal patterns (temperature fluctuation over the course of a single year) are predictable and cyclical (economic expansion, contraction, and trough) are not consistent in the long run. This is why it is important to examine the time plot of the series over time.
- If there are repeated seasonal patterns, do the variances change over time? In other words, over time, do the vertical distances of the seasonal fluactuaions become larger or smaller?

ACF plot or correlogram: the (sample) autocorrelation function, $r_{k}$, at lag $k$, for the observed time series $Y_1, Y_2, \ldots, Y_n$ is given as follows:

\[\begin{equation*} r_k=\frac{\sum_{t=k+1}^n\left(Y_t-\bar{Y}\right)\left(Y_{t-k}-\bar{Y}\right)}{\sum_{t=1}^n\left(Y_t-\bar{Y}\right)^2} \quad \text{for } k=1,2, \ldots \end{equation*}\]

where:
- $Y_1, Y_2,..., Y_n$ is times series
- $\bar{Y}$ is the grand mean of the entire series
- $\sum_{t=1}^n\left(Y_t-\bar{Y}\right)^2$ is the grand sum of squares (i.e., there are $n$ squared terms)
- $\sum_{t=k+1}^n\left(Y_t-\bar{Y}\right)\left(Y_{t-k}-\bar{Y}\right)$ is the sum of $n - k$ cross products
In this plot, we are looking for significant correlation coefficients between the time series and different of lagged values of itself to determine if there are seasonal patterns or if the series is white noise.
- If seasonal patterns are present, the plot of the sample ACF often exhibits sinusoidal patterns.
- If the time series is white noise, the correlogram displays statistically insignificant autocorrelation coefficients $r_{k}$ for most (if not all) lag $k$.
- The ACF plot can often used to graphically determine the orders of the (non-seasonal) $MA(q)$ and (seasonal) $MA(Q)$ components of the (S)ARIMA model. It can be shown that, for $MA(q)$ and $MA(Q)$ processes, the autocorrelation function is theoretically zero for non-seasonal lags beyond $q$ or seasonal lags beyond $Q$. As a result, the sample ACF plot can be a good indicator for the $q$ or $Q$ at which the significant lags cut off.

PACF plot: the (sample) partial autocorrelation, denoted as $\phi_{k k}$, is defined as

\[\begin{equation*} \phi_{k k}=\frac{\rho_k-\sum_{j=1}^{k-1} \phi_{k-1, j} \rho_{k-j}}{1-\sum_{j=1}^{k-1} \phi_{k-1, j} \rho_j} \end{equation*}\]

where
- $\phi_{k k}$ represents the correlation between $Y_t$ and $Y_{t − k}$ after removing the effect of the intermediate lag values ($Y_{t − 1}, Y_{t − 2}, Y_{t − 3},..., Y_{t − k + 1}$)
- $\phi_{k, j}=\phi_{k-1, j}-\phi_{k k} \phi_{k-1, k-j} \quad \text { for } j=1,2, \ldots, k-1$
The PACF has the same property for $AR$ processes as that of the ACF for $MA$ processes. Theoretically, the partial correlation coefficient at lag $k$ becomes zero beyond the the appropriate orders $p$ and $P$. Thus, the PACF plot is often used to identify the orders of the (non-seasonal) $AR(p)$ and (seasonal) $AR(P)$ components of the (S)ARIMA model.

General Behavior of the ACF and PACF for ARMA Models

	AR (p)	MA (q)	ARMA (p, q), (p>0), and (q>0)
ACF	Tails off	Cuts off after lag (q)	Tails off
PACF	Cuts off after lag (p)	Tails off	Tails off

Source: Time Series Analysis With Applications in R (page 116)

Although the table above describes the general behaviors for (non-seasonal) ARMA models, the same principles apply when determining the orders of the seasonal components $P$ and $Q$ for a (S)ARMA model. However, instead of looking for characteristics like tailing off or cutting off beyond $p$ and $q$ lags, we focus on these characteristics over seasonal lags. For weekly data, where the seasonality period is approximately $365.25/7 \approx 52.18$, we can pay attention to lag 52, 104, and so on.

In terms of the number of lags to plot, we use a rule-of-thumb based on the following post by Rob Hyndman.

lags = np.min([2 * (365.25 / 7), (gas_data.shape[0] / 5)])

fig, ax = plot_correlations(
    series=gas_data,
    lags=lags,
    zero_lag=False,
    suptitle='Weekly U.S. Product Supplied of Finished Motor Gasoline'
)
fig.set_size_inches((16, 5))
plt.show()

ACF

fig = plot_acf(
    x=gas_data,
    lags=lags,
    zero=False
)
fig.set_size_inches(12, 6)
plt.axvline(x=52, color='r', linestyle='--', label='Lag 52')
plt.axvline(x=104, color='g', linestyle='--', label='Lag 104')
plt.legend()
plt.show();

PACF

fig = plot_pacf(
    x=gas_data,
    lags=lags,
    zero=False
)
fig.set_size_inches(12, 6)
plt.axvline(x=52, color='r', linestyle='--', label='Lag 52')
plt.axvline(x=104, color='g', linestyle='--', label='Lag 104')
plt.legend()
plt.show();

Observations

The following observations can be made:

The time series is definitely non-stationary with both weekly seasonality and non-constant trends, as indicated by the sinusoidal patterns in the ACF (i.e., the peak-to-peak patterns last about $\sim52$ lags).
The trends can be more clearly observed by plotting the yearly averages:

gas_data.resample('YS').mean().plot(y='gas_product', figsize=(7, 5), title='Average Gas Product by Year');

The yearly variances of the series, with the exception of year 2020 (i.e., COVID-19), appear relatively stable, but we can further stabilize the variances with a data transformation.

gas_data.resample('YS').var().plot(y='gas_product', figsize=(7, 5), title='Variance of Gas Product by Year');

The confirmed seasonal period is quite long, i.e., $m\approx52.18$. Instead of the (S)ARIMA model, which is designed for shorter seasonal periods such as 12 for monthly data and 4 for quarterly data, we can train a harmonic regression model. With this approach,

\[\begin{equation*} y_t=a+\sum_{k=1}^K\left[\alpha_k \sin (\frac{2 \pi k t}{m})+\beta_k \cos (\frac{2 \pi k t}{m})\right]+N_t \end{equation*}\]
- seasonal patterns are modeled using Fourier terms
- short-term patterns are modeled by the $N_{t}$ ARMA process
- the smoothness of the seasonal pattern can be controlled by the frequency hyperparameter $K$, which is the number of Fourier sin and cos pairs; the seasonal pattern is smoother for smaller values of $K$, which can be tuned using time-series cross-validation
Finally, the devastating effect of the COVID-19 pandemic on the gasoline industry is fairly noticeable in the time plot for year 2020. These extreme values should be addressed before training any model. There may be many possible ways to handle these outliers, but we will revert to an approach of judgemental forecasting.

gas_data.loc['2018':'2023'].plot(figsize=(15, 5), title='Gas Product (2019 - 2023)');

Handling COVID-19 with Scenario-Based Forecasting

It can be argued that the sudden drop of gasoline products observed in the data (and in the time plot) represents a structural break that is caused by the COVID-19 pandemic. According to the research conducted by Athanasopoulos et al. (2023) and published in the Journal of Travel Research, Volume 62, Issue 1, the biggest challenge presented by the COVID-19 pandemic on any forecasting tasks is an increased level of uncertainly:

From a statistical modelling and forecasting perspective, these disruptions cause unique challenges. The pandemic has meant that we cannot extrapolate the strong and persistent signals observed in historical tourism time series. The structural break is deep and the path to recovery remains extremely uncertain.

The authors in this paper argue that historical data from the COVID-19 years cannot be used to forecast without first addressing this structural breakdown:

… the effect of the COVID-19 pandemic is such that historical data cannot be used to project forward without explicitly accounting for the depth and the length of the structural break caused by COVID-19, and the subsequent unknown and unprecedented path to recovery. Both the depth and length of the effect of the pandemic are extremely challenging or even impossible to estimate and predict statistically, and therefore we revert to a novel approach of judgemental forecasting.

In this project, we will develop our own judgmental forecasting methodology, which includes the following steps:

Identify outliers using robust Season-Trend decomposition with LOESS weighting, where any outliers will be detected in the remainder series.
Determine the outlier with the earliest and latest dates within the COVID-19 years (i.e., Jan 2020 onward). These effectively serve as proxies for the length of the structural break.
Utilize STL forecasting, which employs the seasonal naive method for forecasting the decomposed trend, seasonal, and residual components separately; these forecasts are then combined to predict gasoline product for all observations between the dates identified in the previous step.
Replace all values between the earliest and latest dates within the COVID-19 years with the forecast generated by the model.

This approach allows us to consider a counterfactual scenario had the COVID-19 pandemic never occurred. Any subsequent models trained on this “counterfactual” data generate forecasts that can be regarded as recovery trajectories. In other words, these forecasts represent the gasoline production levels that might have been attained if the pandemic had not happened, and they should serve as the benchmark that producers should aim to return to.

The objective is to provide more dependable scenario-based forecasts. Consequently, the step involving the training of a model to predict the COVID-19 data will be treated as a hyperparameter in itself, fine-tuned using time series cross-validation.

Decomposition

m = (365.25 / 7)
decomp_result = STL(endog=pd.Series(train['gas_product'], name='Seasonal-Trend Decomposition of Gas Product'), period=int(np.floor(m)), robust=True).fit()
fig = decomp_result.plot()
fig.set_size_inches(12, 8)
plt.show();

Outlier Detection

We define outliers as observations whose residuals are greater than three times the interquartile range (IQRs) of the middle 50% of the data.

resid_75 = np.quantile(decomp_result._resid, 0.75)
resid_25 = np.quantile(decomp_result._resid, 0.25)
resid_iqr = resid_75 - resid_25

# Indices of outliers
outlier_indices = np.logical_or((decomp_result._resid > resid_75 + 3 * resid_iqr), (decomp_result._resid < resid_25 - 3 * resid_iqr))
outlier_indices.sum()

Print the earliest and latest dates of the outliers within the COVID-19 years:

earliest = train.loc[(outlier_indices)].loc['2020'].index.min().strftime('%Y-%m-%d')
latest = train.loc[(outlier_indices)].index.max().strftime('%Y-%m-%d')
print(f'The outlier with the earliest date within the COVID-19 years is {earliest}')
print(f'The outlier with the latest date within the COVID-19 years is {latest}')

The outlier with the earliest date within the COVID-19 years is 2020-03-13
The outlier with the latest date within the COVID-19 years is 2022-08-19

We will add a boolean column to the data set to flag outlying observations that should be substituted with forecasts:

train['covid_forecast'] = np.logical_and((train.index >= earliest), (train.index <= latest))
test['covid_forecast'] = False

Upload to S3

We can proceed by uploading the raw data, including the new boolean column, to S3. This step is crucial as it enables us to continue with the following tasks:

Train-test split
Forecasting COVID-19 data using historical data

We will perform these tasks using a SageMaker processing job.

# Save the outlier indices to the current directory
pd.concat([train, test], axis=0).to_csv('gas_data.csv', index=True)

# Upload both the raw data and the outlier indices to s3
sagemaker.s3.S3Uploader.upload('gas_data.csv', f's3://{config["s3_bucket"]}/{config["s3_key"]}/raw-data')

# Remove from the current directory
os.remove('gas_data.csv')
os.remove('gas_data.xls')

Checkpoint II

By the end of EDA, our project directory should look like this:

.
├── notebooks
│   └── eda.ipynb
├── poetry.lock
├── pyproject.toml
├── README.md
├── src
│   ├── config
│   │   └── main.yaml
│   └── __init__.py
└── tests
    └── __init__.py

Processing Job

To prepare the data for training, including generating a model-based counterfactual data set, we will use a SageMaker processing job. The diagram below provides a visual representation of how SageMaker orchestrates a processing job. SageMaker takes our processing script, retrieves our data from S3 (if applicable), and then deploys a processing container. This container image can be a built-in SageMaker image or a custom one we provide. The advantage of processing jobs is that Amazon SageMaker handles the underlying infrastructure, ensuring resources are provisioned only for the duration of the job and then reclaimed afterward. Upon completion, the output of the processing job is stored in the specified Amazon S3 bucket.

Two additional resources to learn about SageMaker processing jobs:

For other example usages, check out the official Amazon SageMaker Examples documentation page.
For documentation on API, see here.

Processing Entry Script

Create a preprocess_entry.py (link) script in the src directory. Here is a summary of the script:

Section	Description
Script Overview	The script `preprocess_entry.py` contains the logic for forecasting COVID-19 data using STL forecasting with naive methods for different components. It operates within Amazon SageMaker as a processing job and includes a preprocess pipeline with a log transformation followed by STL forecasting for COVID-19 data.
Key Libraries Used	- pandas: For data manipulation and analysis. - numpy: For numerical operations. - sktime: For advanced time series forecasting, particularly STL and naive forecasting methods. - argparse: For command-line option and parsing hyperparameters passed to the preprocessing script at run-time. - hydra: For managing configuration files. - logging: For generating log messages. - warnings: For handling warnings during script execution.
Main Functionalities	1. Data Preparation: Loads and preprocesses gas product data, including the boolean indicator for outlaying COVID-19 observations. 2. Model Configuration and Forecasting: Sets up STL forecasting with naive methods for trend, seasonality, and residuals, which are forecast separately and combined to forecast these outlaying COVID-19 observations. 3. Data Splitting: Divides the data into training and testing sets based on a specified forecast horizon. 4. Data Saving: Saves processed data to disk, with an option to skip saving in test mode.
STL Forecasting with Naive Methods	Employs STL forecasting, decomposing the time series into trend, seasonal, and residual components, each forecasted using the naive method with `strategy = mean`. This approach is encapsulated in a `forecast` function that manages the forecasting process.
Configuration Management	Utilizes Hydra for managing configuration parameters, allowing for easy adjustment of settings separated from the code. Configuration parameters are accessed from a dictionary object.
Testing with Local Mode	Includes a `--test_mode` argument for local testing, which reduces data size and skips saving results to disk. This feature is useful for testing the script in a local environment before deploying it to Amazon SageMaker.

Custom Docker Image for Processing

To facilitate a streamlined data processing workflow, we will create a custom Docker image. In this project, we will not only build an image to process our data but also build two other images to train and serve our model. To manage the creation and deployment of these images, we will create a parameterized bash script. First, create a docker directory in the root directory of the project and a build_and_push.sh (link) script that takes three arguments:

image_tag: tag of the docker image
mode: one of ‘preprocess’, ‘train’, ‘serve’
ecr_repo: name of the ECR private repository

The script below automates the task of building docker images for any of the specific task— preprocess, train, or serve— and pushes it to the ECR repository we created earlier.

#!/bin/bash

# Always anchor the execution to the directory it is in, so we can run this bash script from anywhere
SCRIPT_DIR=$(python3 -c "import os; print(os.path.dirname(os.path.realpath('$0')))")

# Set BUILD_CONTEXT as the parent directory of SCRIPT_DIR
BUILD_CONTEXT=$(dirname "$SCRIPT_DIR")

# Check if arguments are passed, otherwise prompt
if [ "$#" -eq 3 ]; then
    image_tag="$1"
    mode="$2"
    ecr_repo="$3"
else
    read -p "Enter the custom image tag name: " image_tag
    read -p "Select one of preprocess, train, or serve: " mode
    read -p "Enter the ECR repository name: " ecr_repo
fi

# Check if the image tag is provided where [-z string]: True if the string is null (an empty string)
if [ -z "$image_tag" ] || [ -z "$ecr_repo" ]; then
  echo "Please provide both the custom image tag name and the ECR repository name."
  exit 1
fi

# Choose Dockerfile based on mode
if [ "$mode" == "serve" ]; then
    DOCKERFILE_PATH="$SCRIPT_DIR/$mode.Dockerfile"
elif [ "$mode" == "preprocess" ]; then
    DOCKERFILE_PATH="$SCRIPT_DIR/$mode.Dockerfile"
elif [ "$mode" == "train" ]; then
    DOCKERFILE_PATH="$SCRIPT_DIR/$mode.Dockerfile"
else
    echo "Invalid mode specified, which must either be 'train', 'serve' or 'preprocess'."
    exit 1
fi

# Variables
account_id=$(aws sts get-caller-identity --query Account --output text)
region=$(aws configure get region)
image_name="$account_id.dkr.ecr.$region.amazonaws.com/$ecr_repo:$image_tag"

# Login to ECR based on 'https://docs.aws.amazon.com/AmazonECR/latest/userguide/registry_auth.html'
aws ecr get-login-password --region "$region" | docker login --username AWS --password-stdin "$account_id.dkr.ecr.$region.amazonaws.com"

# Docker buildkit is required to use dockerfile specific ignore files
DOCKER_BUILDKIT=1 docker build \
    -f "$DOCKERFILE_PATH" \
    -t "$image_name" \
    "$BUILD_CONTEXT"

docker push "$image_name"

Next, we create a docker file preprocess.Dockerfile, which defines our custom image, installs the necessary dependencies, and sets up the processing script as its primary entry point. More details on the special naming convention can be found here.

FROM python:3.10.12-slim-bullseye

WORKDIR /src

# Only copy files not listed in the dockerfile specific .dockerignore file
COPY ./src/ ./

RUN pip install pandas[performance]==1.5.3 \
                sktime==0.24.0 \
                statsforecast==1.4.0 \
                hydra-core==1.3.2

# Ensure python I/O is unbuffered so log messages are immediate
ENV PYTHONUNBUFFERED=True
# Disable the generation of bytecode '.pyc' files
ENV PYTHONDONTWRITEBYTECODE=True

ENTRYPOINT ["python3", "preprocess_entry.py"]

To keep our image as light as possible, we create a preprocess.Dockerfile.dockerignore file to exclude unnecessary files from being copied onto our image at build time.

src/*
!src/config
!src/preprocess_entry.py
!src/custom_utils.py

Checkpoint III

By the end of this section, the project directory should include the following:

.
├── docker
│   ├── build_and_push.sh
│   ├── preprocess.Dockerfile
│   └── preprocess.Dockerfile.dockerignore
├── notebooks
│   └── eda.ipynb
├── poetry.lock
├── pyproject.toml
├── README.md
├── src
│   ├── config
│   │   └── main.yaml
│   ├── custom_utils.py
│   ├── __init__.py
│   └── preprocess_entry.py
└── tests
    └── __init__.py

Training Job

Amazon SageMaker provides a robust platform for training machine learning models at scale. The infrastructure revolves around the concept of training jobs. These jobs are essentially encapsulated environments wherein models are trained using the data, training algorithms, and compute resources we specify.

The diagram below, taken from AWS’s official documentation, offers a visual representation of how SageMaker orchestrates a training job. Once a training job is initiated, SageMaker handles the heavy lifting: it deploys the ML compute instances, applies the training code and dataset to train the model, and subsequently saves the model artifacts in the designated S3 bucket.

Key Aspects of a SageMaker Training Job:

Training Data: Stored in an Amazon S3 bucket, the training data should reside in the same AWS Region as the training job. In our case, this is the data outputted by the processing job.
Compute Resources: These are the machine learning compute instances (EC2 instances) managed by SageMaker, tailored for model training. When we created the notebook instance, the EC2 instance with a storage volume and pre-installed conda environments is automatically provisioned.
Output: Results from the training job, including model artifacts, are stored in a specified S3 bucket.
Training Code: The location of the training code is typically specified via an Amazon Elastic Container Registry path if we are using a SageMaker built-in algorithm. In this project, we will use our custom training code in the src package.

For this specific project, while SageMaker offers a plethora of built-in algorithms and pre-trained models, we opt for a more tailored approach by using custom code.

Local Mode with SageMaker’s Python SDK

With the SageMaker Python SDK, we can take advantage of the Local Mode feature. This powerful tool lets us create estimators, processors, and pipelines, then deploy them right in our local environment (SageMaker Notebook Instance). It’s an excellent way for us to test our training and processing scripts before transitioning them to SageMaker’s comprehensive training or hosting platforms.

Local Mode is compatible with any custom images we might want to use. To utilize local mode, we need to have Docker Compose V2 installed. We can use the installation guidelines from Docker. It’s crucial to ensure that our docker-compose version aligns with our docker engine installation. To determine a compatible version, refer to the Docker Engine release notes.

To check the compatibility of our Docker Engine with Docker Compose, run the following commands:

$ docker --version
$ docker-compose --version

After executing these, we should cross-reference these versions with those listed in the Docker Engine release notes to ensure compatibility. For reference, as of writing this tutorial, the versions on SageMaker notebooks are currently:

Docker: 20.10.25, build b82b9f3
Docker Compose: v2.23.0

If local model fails, try switch back to an older version of docker-compose and see the following github issues for more details:

# Select a compatible version
$ DOCKER_COMPOSE_VERSION="1.23.2"
# Download docker compose based on version, kernel operating system (uname -s), and machine hardware (uname -m)
$ sudo curl --location https://github.com/docker/compose/releases/download/${DOCKER_COMPOSE_VERSION}/docker-compose-`uname -s`-`uname -m` --output /usr/local/bin/docker-compose
# Make the Docker Compose binary executable
$ sudo chmod +x /usr/local/bin/docker-compose

Managed Spot Training

Another powerful feature of Amazon SageMaker is called Managed Spot Training, which allows us to train machine learning models using Amazon EC2 Spot instances. These Spot instances can be significantly cheaper compared to on-demand instances, potentially reducing the cost of training by up to $90\%$.

Benefits of Using Managed Spot Training

Cost-Efficient: Spot instances can be much cheaper than on-demand instances, leading to substantial cost savings.
Managed Interruptions: Amazon SageMaker handles Spot instance interruptions, ensuring that our training process isn’t adversely affected.
Monitoring: Metrics and logs generated during the training runs are readily available in Amazon CloudWatch.

To enable spot training, we need to specify the following parameters when launching the training job:

max_run: Represents the maximum time (in seconds) the training job is allowed to run.
max_wait: This should be set to a value equal to or greater than max_run. It denotes the maximum time (in seconds) SageMaker waits for a Spot instance to become available.
max_retry_attempts: In the event of training failures, this parameter defines the maximum number of retry attempts.
use_spot_instances: Set this to True to use Spot instances for training. For on-demand instances, set this to False.
checkpoint_s3_uri: This is the S3 URI where training checkpoints will be saved, ensuring that in the event of interruptions, the training can be resumed from the last saved state.

The availability and potential interruption of spot instances are influenced by several factors including the type of instance (e.g., Multi-GPU, Single GPU, Multi-CPU), the geographical region, and the specific availability zone. For GPU-intensive tasks like training, there’s a possibility of encountering an ‘insufficient capacity error’. This happens when AWS lacks the requisite on-demand capacity for a particular Amazon EC2 instance type in a designated region or availability zone. It’s important to remember that capacity isn’t a fixed value; it fluctuates based on the time of day and the prevailing workloads within a given Region or Availability Zone.

To mitigate such capacity issues, there are several strategies we can adopt:

Consider switching to a different instance type that may have more available capacity.
Try changing to a different size within the same instance family, which might offer a balance between performance and availability.
When we launch a notebook instance, another approach is to launch the instance using the desired type but specify subnets across more availability zones. This requires that we take an extra step in our set up to launch a VPC; however, this extra step helps diversify the launch attempts for spot instances and may increase the likelihood of successful provisioning. One thing we need to always ensure is to cross-check that the SageMaker instance types are available in the chosen Region.

CPU instances, which we will be using in this tutorial, are generally more available than GPU instances.

Training Entry Script

Create a train_entry.py (link) script in the src directory. Here is a summary of the script:

Section	Description
Script Overview	The `train_entry.py` script is designed for building, training, and evaluating a time series forecasting model using a harmonic regression model with ARIMA error. This script is tailored for execution within Amazon SageMaker as a training job, with capabilities for local testing, spot training, and automatic model tuning.
Key Libraries Used	- pandas: For data manipulation and analysis. - numpy: For numerical operations. - sktime: For time series forecasting and model selection. - joblib: For model serialization and deserialization. - matplotlib: For plotting and visualizing data. - scipy and statsmodels: For statistical tests and diagnostics.
Main Class: TSTrainer	1. Data Loading: Reads training and test data from CSV files. 2. Model Building: Constructs a harmonic regression model with optional detrending and deseasonalization, and Fourier feature transformation. 3. Training & Cross-Validation: Implements time series cross-validation with sliding window splits. 4. Model Evaluation: Calculates mean squared error for model evaluation. 5. Model Refitting & Persistence: Refits the model on the entire dataset and serializes it for future use.
Model Persistence	After training, the script serializes the model and Fourier feature transformer using joblib, and saves them along with the training data.
Visualization and Diagnostics	Includes static methods for plotting forecast data, plotting cross-validation strategy, and performing diagnostic tests (Shapiro-Wilk and Ljung-Box) on the model residuals. Useful in assessing the model’s assumptions and performance.

Cross-Validation

The train_entry.py script employs a sliding window cross-validation strategy for evaluating the time series forecasting model. This approach is particularly well-suited for time series data, ensuring that the temporal structure of the data is respected during the training and validation process. Here’s an overview of the cross-validation method implemented:

Sliding Window Cross-Validation: This method involves moving a fixed-size window over the time series data to create multiple training and validation sets. Each set consists of a continuous sequence of observations, maintaining the time order.
Implementation Details:
- Window Sizes: The window size (w), step size (s), and forecast horizon (h) are key parameters. The window size determines the length of each training set, the step size controls the movement of the window, and the forecast horizon sets the length of the validation set.
- Temporal Consistency: By using this method, the script ensures that each validation set only includes future data points relative to its corresponding training set, preserving the temporal order crucial for accurate time series forecasting.
- Number of Splits: Given n (the total length of the time series), w (window size), h (forecast horizon), and s (step size), the number of train-validation splits is calculated as follows: \[ \left[ \frac{n - w - h}{s} \right] + 1 \] Where $[\cdot]$ is the floor division operator. This formula ensures that each split is properly aligned within the time series while respecting the constraints set by the window size, step size, and forecast horizon.
Advantages:
- Realistic Evaluation: Mimics a real-world scenario where a model is trained on past data and used to predict future outcomes.
- Robustness: Provides a thorough assessment of the model’s performance over different time periods, making the evaluation more robust against anomalies or non-representative data segments.
Integration with Model Evaluation: The script calculates the Mean Squared Error (MSE) for each split, aggregating these to assess the overall performance of the model. This metric provides a clear quantitative measure of the model’s forecasting accuracy.

TSTrainer.plot_sliding_cv_windows(
    w=config['cv_window_size'],
    s=config['step_length'],
    h=config['forecast_horizon'],
    start_date=str(train.index.min().date()),
    end_date=str(train.index.max().date()),
    freq=train.index.freqstr,
    title='Sliding CV Windows',
    figsize=(18, 5)
)

In the visualization above, each horizontal bar represents a single train-validation split. The blue bars correspond to the training set, and the orange bars represent the forecast horizon (i.e., validation set). During each split, the model is trained on the data observations color-coded in blue and evaluated on the data observations color-coded in orange. After the cross-validation process completes, the model is then refit on the entire data set (i.e. from the earliest to latest dates on the x-axis).

Automatic Model Tuning

In the context of our training with Amazon SageMaker, Automatic Model Tuning (AMT), also known as hyperparameter tuning, plays a pivotal role. AMT optimizes the process of model training by systematically iterating over various hyperparameter combinations to discover the most effective model configuration. This approach is particularly significant in our project’s context, where we aim to forecast gasoline product data with precision.

Integrating AMT with Custom Training Script

Our custom training script, embodied in the TSTrainer class, is designed to handle various hyperparameters like preprocess_detrend, preprocess_deseasonalize, and preprocess_fourier_k.

preprocess_detrend: This hyperparameter controls a tunable (on/off) step to remove trends from the time series data, making the series more stationary and suitable for statistical modeling.
preprocess_deseasonalize: This is another tunable (on/off) preprocessing step that seeks to identify and remove the seasonality from the time series data, which is another requirement for stationarity.
preprocess_fourier_k: This hyperparameter determines the number of Fourier terms used for transforming the time series, aiding in capturing and leveraging cyclical patterns within the data. This is the part that makes our model a harmonic regression model, making it suitable for modeling long seasonal periods like our weekly gasoline product data.

Incorporating AMT with our training script involves the following steps:

Specifying Hyperparameter Ranges: For hyperparameters like preprocess_detrend , preprocess_deseasonalize, and preprocess_fourier_k, we define a range of values that AMT will explore. The SageMaker python SDK supports:
- Continuous Parameters: For hyperparameters that take on a continuous range of values.
- Integer Parameters: For hyperparameters that take on a discrete range of integer values.
- Categorical Parameters: For hyperparameters that take on a discrete range of categorical values.
In this project, we use the IntegerParameter type for preprocess_fourier_k and CategoricalParameter type for preprocess_detrend and preprocess_deseasonalize, which are either True (include this preprocessing step) or False (do not include this preprocessing step).
Setting Up the Training Job: We set up the SageMaker training job by specifying our custom training docker image uri and the hyperparameter ranges for tuning.
Optimization Objective: Choosing the right metric, such as Mean Squared Error (MSE), which our script calculates during the cross-validation process, guides AMT towards optimizing model performance across each cross-validation split.

We use Bayesian optimization for tuning our forecasting model, which sets up hyperparameter tuning as a regression problem:

Regression-Based Exploration: The optimization process begins with educated guesses about potential hyperparameter values and iteratively refines these guesses based on the observed performance.
Balancing Exploration and Exploitation: AMT alternates between exploring new hyperparameter regions and exploiting known combinations that have yielded promising results, effectively balancing the need to discover new solutions and optimize known configurations.

Another reason for using Bayesian optimization is as follows:

Total Combinations: 40
- Integer Hyperparameter (1-10): 10 options (preprocess_fourier_k)
- Two Boolean Hyperparameters: 2 options each (preprocess_detrend & preprocess_deseasonalize)

With brute force grid search:

Approach: Tests every possible combination.
Combinations: 40 in total.
Pros: Simple, exhaustive.
Cons: Time-consuming and computationally expensive.

If we switch to Bayesian optimization

Approach: Uses a probabilistic model to guide the search.
Pros:
- Efficient: Requires fewer trials (i.e., we use only 20 trials in this project)
- Smart Search: Prioritizes more promising hyperparameters based on previous results.
Cons:
- More complex implementation.
- May miss some less obvious solutions.

Bayesian optimization is generally more efficient than brute force grid search, especially when the number of hyperparameter combinations becomes large, as it strategically explores the parameter space and may converge faster to optimal solutions. To learn more:

Official documentations from SageMaker
Research paper by Amazon scientists

Custom Docker Image for Training

In order to run our custom training script in SageMaker, we need to build a custom Docker image that includes all the necessary dependencies. Similar to the preprocess.Dockerfile, we create a train.Dockerfile that installs the required libraries and copies the training script onto the image. We then build the image and push it to Amazon Elastic Container Registry (ECR) for use in SageMaker with the same build_and_push.sh bash script:

FROM python:3.10.12-slim-bullseye

WORKDIR /opt/ml/code/

# Only copy files not listed in the dockerfile specific .dockerignore file
COPY ./src/ ./

# These libraries are required for the sagemaker-training package
RUN apt-get update && apt-get install -y \
    gcc \
    build-essential \
    && rm -rf /var/lib/apt/lists/*

RUN pip install pandas[performance]==1.5.3 \
                sktime==0.24.0 \
                statsforecast==1.4.0 \
                statsmodels==0.14.0 \
                hydra-core==1.3.2 \
                matplotlib==3.8.0 \
                joblib==1.3.2 \
                sagemaker-training==4.7.4

# Rename train_entry.py to train.py (optional if training entrypoint is named anything other than train.py)
RUN mv train_entry.py train.py

# Ensure python I/O is unbuffered so log messages are immediate
ENV PYTHONUNBUFFERED=True
# Disable the generation of bytecode '.pyc' files
ENV PYTHONDONTWRITEBYTECODE=True
# Set entrypoint to the training script
ENV SAGEMAKER_PROGRAM train.py

Lastly, we also add a train.Dockerfile.dockerignore file to the docker/ directory to ensure that the build_and_push.sh script only copies the necessary files onto the image:

src/*
!src/config
!src/train_entry.py
!src/custom_utils.py

Checkpoint IV

By the end of this section, the project directory should resemble:

.
├── docker
│   ├── build_and_push.sh
│   ├── preprocess.Dockerfile
│   ├── preprocess.Dockerfile.dockerignore
│   ├── train.Dockerfile
│   └── train.Dockerfile.dockerignore
├── notebooks
│   └── eda.ipynb
├── poetry.lock
├── pyproject.toml
├── README.md
├── src
│   ├── config
│   │   └── main.yaml
│   ├── custom_utils.py
│   ├── __init__.py
│   ├── preprocess_entry.py
│   └── train_entry.py
└── tests
    └── __init__.py

Forecast Notebook

The following sub-sections are included in the forecast.ipynb notebook, which ties everything above— processing job, training job, hyperparameter tuning— together. In this notebook, we test our processing and training scripts locally, and then run the jobs on SageMaker. In addition, we also visualize the results of each step, ending with model forecasting and diagnostics.

The following jupyter notebook is assumed to be using the same kernel as the one where the src package was installed.

Imports

%reload_ext autoreload
%autoreload 2

import os
import io
import pickle
import sys
import time
import json
import datetime
import joblib

import boto3
import sagemaker
from sagemaker.model import Model
from sagemaker.estimator import Estimator
from sagemaker.predictor import Predictor
from sagemaker.processing import Processor, ProcessingInput, ProcessingOutput
from sagemaker.tuner import ContinuousParameter, IntegerParameter, CategoricalParameter, HyperparameterTuner
from tqdm import tqdm

import numpy as np
import pandas as pd
from hydra import compose, initialize, core
from omegaconf import OmegaConf

import matplotlib.pyplot as plt
from src.train_entry import TSTrainer

Hydra

Again, we reference the main.yaml config file to set up our project. We also clear the global hydra instance (i.e., first line) to ensure that we can run this cell of the notebook multiple times without any issues.

core.global_hydra.GlobalHydra.instance().clear()
initialize(version_base='1.2', config_path='../src/config', job_name='forecast')
config = OmegaConf.to_container(compose(config_name='main'), resolve=True)

S3

These are the S3 paths:

The processing job downloads the raw data files from the raw_data_path from S3
The processing job uploads the preprocessed data to the designated training and testing channels located in train_val_test_path, setting the stage for the training phase
Subsequently, the training job accesses and downloads the preprocessed data from each specified channel within train_val_test_path onto the training image for utilization

s3 = boto3.client('s3')

raw_data_path = f's3://{config["s3_bucket"]}/{config["s3_key"]}/raw-data'

train_val_test_path = {
    'train': f's3://{config["s3_bucket"]}/{config["s3_key"]}/input-data/train',
    'test': f's3://{config["s3_bucket"]}/{config["s3_key"]}/input-data/test'
}
train_val_test_path, raw_data_path

({'train': 's3://yang-ml-sagemaker/forecast-project/input-data/train',
  'test': 's3://yang-ml-sagemaker/forecast-project/input-data/test'},
 's3://yang-ml-sagemaker/forecast-project/raw-data')

SageMaker

These are used to manage the SageMaker session in this notebook:

The sagemaker session manages any underlying interactions with the Amazon SageMaker APIs, and we specify a default bucket
The sagemaker boto3 client is used for managing sagemaker resources such as endpoints
The ecr boto3 client is also used for managing ecr resources (process, training, and serving docker images)
The lambda boto3 client is used for for managing lambda functions
The iam boto3 client is used for managing iam policies
The api gateway client is used to manage api resources
The role encapsulates permissions specified in the forecast-sagemaker-execution-role we created earlier

sagemaker_session = sagemaker.Session(default_bucket=config['s3_bucket'])
sm_boto3 = boto3.client('sagemaker')
ecr_boto3 = boto3.client('ecr')
lambda_boto3 = boto3.client('lambda')
iam_boto3 = boto3.resource('iam')
apigateway_boto3 = boto3.client('apigateway')
role = sagemaker.get_execution_role()

Docker Image for Preprocessing

!cd {config['docker_dir_path']} && bash ./build_and_push.sh preprocess-latest preprocess {config['ecr_repository']}

Construct the processing job image uri:

images = !aws ecr list-images --repository-name {config['ecr_repository']}
images_str = '\n'.join(images)
images_str = json.loads(images_str)

for ecr_meta_data_dict in images_str['imageIds']:
    if ecr_meta_data_dict['imageTag'].startswith('preprocess'):
        preprocess_image_tag = ecr_meta_data_dict['imageTag']

preprocess_image_uri = f'{sagemaker_session.account_id()}.dkr.ecr.{sagemaker_session.boto_region_name}.amazonaws.com/{config["ecr_repository"]}:{preprocess_image_tag}'

Test Processing Job Locally

# Clear tmp directory in case we run out of space
!sudo rm -rf /tmp/tmp*

test_processor = Processor(
    image_uri=preprocess_image_uri,
    role=role,
    instance_type='local',
    instance_count=config['preprocess_instance_count'],
    base_job_name=config['preprocess_base_job_name'],
    entrypoint=['python3', 'preprocess_entry.py']
)

test_processor.run(
    # The data sets are loaded from the source S3 path to the destination path in the processing container
    inputs=[ProcessingInput(
        source=raw_data_path,
        destination=config['preprocess_input']
    )],
    outputs=[
        ProcessingOutput(
            # The processing script writes train and test splits to these locations in the container
            source=os.path.join(config['preprocess_output'], key),
            # Processing job will upload the preprocessed data to this S3 uri
            destination=train_val_test_path[key]
        ) for key in train_val_test_path
    ],
    # Run in test mode to not upload the preprocessed data to S3
    arguments=['--test_mode']
)

Run Processing Job in the Cloud

processor = Processor(
    image_uri=preprocess_image_uri,
    role=role,
    instance_type=config['preprocess_instance_type'],
    instance_count=config['preprocess_instance_count'],
    base_job_name=config['preprocess_base_job_name'],
    sagemaker_session=sagemaker_session,
    entrypoint=['python3', 'preprocess_entry.py']
)

processor.run(
    # The data sets are loaded from the source S3 path to the destination path in the processing container
    inputs=[ProcessingInput(
        source=raw_data_path,
        destination=config['preprocess_input']
    )],
    outputs=[
        ProcessingOutput(
            # The processing script writes train and test splits to these locations in the container
            source=os.path.join(config['preprocess_output'], key),
            # Processing job will upload the preprocessed data to this S3 uri
            destination=train_val_test_path[key]
        ) for key in train_val_test_path
    ]
)

Visualize Counterfactual Data

We can download the processed data from S3 and visualize the counterfactual data versus the original time series:

train = pd.read_csv(os.path.join(train_val_test_path['train'], 'train.csv'), index_col=0)
train.index = pd.to_datetime(train.index)
train.index.freq = config['freq']
test = pd.read_csv(os.path.join(train_val_test_path['test'], 'test.csv'), index_col=0)
test.index = pd.to_datetime(test.index)
test.index.freq = config['freq']

fig, ax = plt.subplots(figsize=(15, 5))
# Plot original data
ax.plot(train.loc ['2016':'2023']['gas_product_forecast'], label='Counterfactual', color='orange')
ax.plot(train.loc['2016':'2023']['gas_product'], label='Original', color='blue')
ax.plot(test['gas_product'], label='Test', color='violet')
ax.set_xlabel('Date')
ax.set_ylabel('Gas Product')
ax.set_title('Counterfactual v.s. Original Data')
plt.legend(loc='best')
plt.show()

As mentioned in the exploratory data analysis, the counterfactual (yellow) data could be interpreted as the gasoline production levels that might have been attained if the pandemic had not happened; they could serve as the benchmark that producers should aim to return to.

Docker Image for Training

!cd {config['docker_dir_path']} && bash ./build_and_push.sh train-latest train {config['ecr_repository']}

Construct the training job image uri:

images = !aws ecr list-images --repository-name {config['ecr_repository']}
images_str = '\n'.join(images)
images_str = json.loads(images_str)

for ecr_meta_data_dict in images_str['imageIds']:
    if ecr_meta_data_dict['imageTag'].startswith('train'):
        train_image_tag = ecr_meta_data_dict['imageTag']

train_image_uri = f'{sagemaker_session.account_id()}.dkr.ecr.{sagemaker_session.boto_region_name}.amazonaws.com/{config["ecr_repository"]}:{train_image_tag}'

Test Training Job Locally

# Clear tmp directory in case we run out of space
!sudo rm -rf /tmp/tmp*

# Use fixed hyperparameters for testing
test_hyperparameters = {
    'test_mode': 1,
    'use_counterfactual_data': 1,
    'preprocess_detrend': 1,
    'preprocess_deseasonalize': 1,
    'preprocess_fourier_k': 2
}

test_estimator = Estimator(
    image_uri=train_image_uri,
    role=role,
    instance_count=config['train_instance_count'],
    instance_type='local',
    volume_size=config['volume_size'],
    output_path=config['output_path'],
    base_job_name=config['train_base_job_name'],
    hyperparameters=test_hyperparameters,
    code_location=config['code_location']
)

test_estimator.fit(train_val_test_path)

Hyperparameter Tuning

Define the hyperparameter search space:

search_space = {
    'use_counterfactual_data': CategoricalParameter([1, 0]),
    'preprocess_detrend': CategoricalParameter([1, 0]),
    'preprocess_deseasonalize': CategoricalParameter([1, 0]),
    'preprocess_fourier_k': IntegerParameter(min_value=1, max_value=config['max_k'])
}

Define metric to optimize:

metric_definitions = [
    {
        'Name': config['objective_metric_name'],
        # Regex for matching the logs outputted by the training script
        'Regex': 'Mean MSE across all splits: ([0-9\\.]+)',
    }
]

Define estimator with spot training:

estimator = Estimator(
    image_uri=train_image_uri,
    role=role,
    instance_count=config['train_instance_count'],
    instance_type=config['train_instance_type'],
    volume_size=config['volume_size'],
    max_run=config['max_run'],
    output_path=config['output_path'],
    base_job_name=config['train_base_job_name'],
    hyperparameters={
        'test_mode': 0
    },
    code_location=config['code_location'],
    use_spot_instances=config['use_spot_instances'],
    max_wait=config['max_wait'],
    checkpoint_s3_uri=config['checkpoint_s3_uri'],
    max_retry_attempts=config['max_retry_attempts']
)

Define hyerparameter tuner:

tuner = HyperparameterTuner(
    estimator=estimator,
    objective_metric_name=config['objective_metric_name'],
    hyperparameter_ranges=search_space,
    metric_definitions=metric_definitions,
    strategy=config['strategy'],
    objective_type=config['objective_type'],
    max_jobs=config['max_jobs'],
    max_parallel_jobs=config['max_parallel_jobs'],
    base_tuning_job_name=config['base_tuning_job_name']
)

tuner.fit(train_val_test_path)

WARNING:sagemaker.estimator:No finished training job found associated with this estimator. Please make sure this estimator is only used for building workflow config
INFO:sagemaker:Creating hyperparameter tuning job with name: tuning-job-231118-0627


............................................................................................................................................!

Visualize Hyperparameter Optimization

hpo_analytics = sagemaker.HyperparameterTuningJobAnalytics(tuner.latest_tuning_job.name)

hpo_results = hpo_analytics.dataframe()

hpo_results.sort_values('FinalObjectiveValue', ascending=True)

plt.figure(figsize=(10, 6))
# Sort by TrainingStartTime
hpo_results.sort_values('TrainingStartTime', inplace=True)
plt.scatter(hpo_results['TrainingStartTime'], hpo_results['FinalObjectiveValue'])
plt.plot(hpo_results['TrainingStartTime'], hpo_results['FinalObjectiveValue'].rolling(7).mean())
plt.xlabel('TrainingStartTime')
plt.ylabel('Final objective value')
plt.title('Hyperparameter Optimization History')
plt.show();

Forecasts

Once the training has completed, the model artifacts will be uploaded to the specified s3 bucket; in our custom training script, the artifacts that were uploaded are as follows:

Two modeling pipeline objects containing preprocessing steps and a final estimator (harmonic regression model)
- The first was trained on the training set
- The second was trained on the entire data set (train + test)
Two fitted fourier feature transformers that can be used to generate fourier features (i.e., covariates) at prediction time
The training set and the combined data set (train + test)

In order to visualize the out-of-sample forecasts for the next 26 weeks (or $\sim6$ months), we need to obtain the name and s3 path of the model artifacts with the best cross-validation MSE score:

best_model_name = sm_boto3.describe_hyper_parameter_tuning_job(
    HyperParameterTuningJobName=tuner.latest_tuning_job.name
)['BestTrainingJob']['TrainingJobName']

# Obtain s3 path to model artifacts
best_model_s3_path = sm_boto3.describe_training_job(
    TrainingJobName=best_model_name
)['ModelArtifacts']['S3ModelArtifacts']

print(f'Best model artifacts persisted at {best_model_s3_path}')

Best model artifacts persisted at s3://your-s3-bucket/forecast-project/models/tuning-job-231118-0627-019-07dc2def/output/model.tar.gz

Download the compressed archive file to local directory and uncompress:

!aws s3 cp {best_model_s3_path} /tmp/model_artifacts.tar.gz
# The options -x = extract files from the archive, -z = uncompress the archive with gzip, -f = use archive file, and -C = change directory to the specified directory
!tar -xzf /tmp/model_artifacts.tar.gz -C /tmp

Again, there are two model pipelines and fourier feature transformers:

model_full = joblib.load('/tmp/model_full_target_pipeline.joblib')
fourier_transformer_full = joblib.load('/tmp/model_full_fourier_transformer.joblib')

model_train = joblib.load('/tmp/model_train_target_pipeline.joblib')
fourier_transformer_train = joblib.load('/tmp/model_train_fourier_transformer.joblib')

Let us forecast the test period and visualize the forecasts. First, we need to create the following data sets (note that we are using the counterfactual data based on the hyperparameter optimization results above):

y_train = train['gas_product_forecast'].copy()
y_train.index = pd.PeriodIndex(y_train.index, freq=config['freq'])

y_test = test['gas_product'].copy()
y_test.index = pd.PeriodIndex(y_test.index, freq=config['freq'])

y_full = pd.concat([y_train, y_test], axis=0)

The TSTrainer class in the training entrypoint contains a static method that allows us to plot the forecast results. Forecast plot for test period:

TSTrainer.plot_forecast(
    target_pipeline=model_train,
    fourier_transformer=fourier_transformer_train,
    y_train=y_train,
    y_test=y_test,
    conf=config['conf'],
    forecast_horizon=config['forecast_horizon'],
    start_date='2022-01-01'
)

Forecast plot for out-of-sample next 26 weeks:

TSTrainer.plot_forecast(
    target_pipeline=model_full,
    fourier_transformer=fourier_transformer_full,
    y_train=y_full,
    y_test=None,
    conf=config['conf'],
    forecast_horizon=config['forecast_horizon'],
    start_date='2023-01-01'
)

Model Diagnostics

In time series forecasting, conducting diagnostics tests is a vital step to ensure the validity and reliability of the model. These tests help us understand the behavior of the residuals (the differences between the observed and predicted values), which in turn gives insights into the model’s accuracy and areas for improvement. The diagnostics method in our script performs two key statistical tests: the Shapiro-Wilk test and the Ljung-Box test.

Shapiro-Wilk Test for Normality

Purpose: This test checks whether the residuals of the model follow a normal distribution. In many statistical models (which is our case), the assumption of normality in residuals is crucial for the validity of various statistical inferences— such as prediction intervals.

Ljung-Box Test for Autocorrelation

Purpose: This test checks for autocorrelation in the residuals at different lag intervals. Autocorrelation implies that the residuals are correlated with each other at different time lags, which can indicate model inadequacies or potential information that the model is not capturing.

Similar to the forecast visualization method, there is also a diagnostics static method in the TSTrainer class that can be used to conduct these statistical tests:

TSTrainer.diagnostics(
    target_pipeline=model_full,
    fourier_transformer=fourier_transformer_full,
    fh=config['forecast_horizon'],
    y_full=y_full
)

	Test	Null Hypothesis	P-Value	Reject at 1%	Reject at 5%	Reject at 10%
0	Shapiro-Wilk	Normality	4.127948e-10	True	True	True
1	Ljung-Box	No Autocorrelation	9.478134e-01	False	False	False

As can be seen, we fail to reject the null hypothesis of independent error, but we reject the null hypothesis of normality.

At this juncture, it’s crucial to consider the specific business context and requirements when deciding our next steps. If the project timeline and objectives prioritize rapid deployment over statistical inference, and the current level of forecast accuracy aligns with business needs, we may proceed to deployment.

However, if the business context demands a higher degree of inferential accuracy, it would be prudent for us to revisit and refine our models to ensure they adhere more closely to the underlying model assumptions. This decision is a delicate balance between technical perfection and practical business needs, and should be made in close consultation with stakeholders to align with the overarching goals and constraints of the project.

Checkpoint V

At this point, we have completed the offline learning portion of the project. We have trained and evaluated our model, and we are ready to deploy them to production. The project directory should now look like this:

.
├── docker
│   ├── build_and_push.sh
│   ├── preprocess.Dockerfile
│   ├── preprocess.Dockerfile.dockerignore
│   ├── train.Dockerfile
│   └── train.Dockerfile.dockerignore
├── notebooks
│   ├── eda.ipynb
│   └── forecast.ipynb
├── poetry.lock
├── pyproject.toml
├── README.md
├── src
│   ├── config
│   │   └── main.yaml
│   ├── custom_utils.py
│   ├── __init__.py
│   ├── preprocess_entry.py
│   └── train_entry.py
└── tests
    └── __init__.py

Model Deployment with Lambda & API Gateway

For this project, we will deploy our model as a serverless endpoint and enhance it with AWS Lambda and API Gateway integration. This inference option is also called serverless inference, which is ideal for intermittent or unpredictable inference traffic patterns. The following diagram illustrates the architecture of this inference option:

In this architecture, the client sends a request to API Gateway, which triggers a Lambda function. The Lambda function then invokes the SageMaker endpoint and returns the forecasts to the client. Several key benefits for this architecture:

Scalability: Automatically scales resources to meet the demand of inference requests. Ideal for applications with fluctuating or unpredictable traffic, ensuring that resources are efficiently utilized and not wasted during idle times.
Cost-Effective: Operates on a pay-per-use model. We only incur costs when the Lambda function is invoked and when the SageMaker endpoint processes requests. This is particularly advantageous for intermittent use cases, as there are no charges during idle periods.
Enhanced Security and Isolation: Each component (API Gateway, Lambda, SageMaker) provides built-in security features, contributing to a secure and isolated environment for processing and handling inference requests.

Model Serving & Serverless Endpoint

Serving Entry

Similar to processing and training jobs, we will use a Docker container to serve our model. First, we create a serve_entry.py (link) entrypoint in the src package. This script, leveraging FastAPI, forms the core of our serving logic. Below is an overview:

Section	Description
Script Overview	The `serve_entry.py` script is set up for serving a machine learning model using FastAPI, a modern framework for building APIs. It’s designed to be deployed as a containerized application, primarily for use with Amazon SageMaker’s serverless inference endpoints.
Key Libraries Used	- FastAPI: For creating RESTful APIs. - uvicorn: An ASGI server for FastAPI. - joblib: For loading serialized models. - pandas: For data manipulation and analysis. - sktime: For time series forecasting functionalities.
Application Lifespan Management	Implements an `asynccontextmanager` for managing the startup and shutdown of the FastAPI application, which includes loading the model, transformer, and data, as well as cleanup tasks.
Forecasting Logic	Provides a `forecast` function for predicting future values based on the model, taking periods and prediction interval coverage as inputs. The function uses the loaded model and Fourier transformer to generate forecasts and returns a JSON string with predictions and prediction intervals.
FastAPI Application Setup	Configures a FastAPI application with endpoints (`/ping` and `/invocations`) to handle health checks and inference requests. The `/ping` endpoint responds to health check requests from SageMaker, while the `/invocations` endpoint processes inference requests with JSON payloads containing forecasting parameters.
Endpoint Details	- `/ping`: Returns a simple JSON response to indicate the application’s health status. - `/invocations`: Accepts POST requests with a JSON payload specifying the forecasting parameters and returns the forecast results in JSON format.
Error Handling and Validation	Includes error handling and input validation for the `/invocations` endpoint to ensure that incoming requests contain valid data. Errors are logged, and appropriate HTTP response codes are returned for different error types.
Application Execution	Uses `uvicorn` to run the FastAPI application, listening on port 8080. Configures logging and starts the application with the defined lifespan management and endpoints.
Model Loading and Usage	On startup, the script loads the trained model and Fourier transformer from disk. SageMaker copies these artifacts from the S3 path we provide onto the container at runtime. These components are used in the `forecast` function to generate predictions based on the input parameters.

Docker

Add a serve.Dockerfile in the docker directory. This file, differing slightly from the preprocess.Dockerfile and train.Dockerfile, specifies serve_entry.py as the entrypoint and includes necessary libraries:

FROM python:3.10.12-slim-bullseye

WORKDIR /opt/ml/code/

# Only copy files not listed in the dockerfile specific .dockerignore file
COPY ./src/ ./

RUN pip install pandas[performance]==1.5.3 \
                sktime==0.24.0 \
                statsforecast==1.4.0 \
                hydra-core==1.3.2 \
                joblib==1.3.2 \
                fastapi==0.104.1 \
                uvicorn==0.24.0.post1

# Ensure python I/O is unbuffered so log messages are immediate
ENV PYTHONUNBUFFERED=True
# Disable the generation of bytecode '.pyc' files
ENV PYTHONDONTWRITEBYTECODE=True

ENTRYPOINT ["python3", "serve_entry.py"]

Add a serve.Dockerfile.ignore to the docker directory. While this is very similar to train.Dockerfile.ignore and preprocess.Dockerfile.ignore, it does not necessarily have to be, and so the separation of logic may still be useful in the future if we want to ignore different files for processing, training, and serving:

src/*
!src/config
!src/serve_entry.py
!src/custom_utils.py

Build and push the serving docker image to ECR and construct the serving image uri:

!cd {config['docker_dir_path']} && bash ./build_and_push.sh serve-latest serve {config['ecr_repository']}

# Construct serving image uri
images = !aws ecr list-images --repository-name {config['ecr_repository']}
images_str = '\n'.join(images)
images_str = json.loads(images_str)

for ecr_meta_data_dict in images_str['imageIds']:
    if ecr_meta_data_dict['imageTag'].startswith('serve'):
        serve_image_tag = ecr_meta_data_dict['imageTag']

serve_image_uri = f'{sagemaker_session.account_id()}.dkr.ecr.{sagemaker_session.boto_region_name}.amazonaws.com/{config["ecr_repository"]}:{serve_image_tag}'

Model

Next, we create a SageMaker model instance, and use it to deploy the best model found during hyperparameter optimization as a serverless endpoint. The key parameters are:

Serving docker image
S3 path of the best model artifacts, which is stored as a variable best_model_s3_path in the previous section

More details on the Model API here.

best_model = Model(
    image_uri=serve_image_uri,
    model_data=best_model_s3_path,
    role=role,
    name=config['serve_model_name'],
    code_location=config['code_location'],
    sagemaker_session=sagemaker_session
)

Serverless Endpoint Configuration & Deployment

Instantiate the ServerlessInferenceConfig class, which has two key parameters:

memory_size_in_mb (int): This parameter sets the memory size available to the serverless endpoint. We can choose from predefined sizes, ranging in 1 GB increments, such as 1024 MB, 2048 MB, and so on, up to 6144 MB.
max_concurrency (int): This parameter defines the maximum number of concurrent invocations that the serverless endpoint can handle. It essentially determines how many requests the endpoint can process at the same time.

serverless_inference_config = ServerlessInferenceConfig(
    memory_size_in_mb=config['serve_memory_size_in_mb'],
    max_concurrency=config['serve_max_concurrency']
)

Explore more about serverless inference:

Serverless Inference with Amazon SageMaker
API for the ServerlessInferenceConfig class

Finally, deploy the model as a serverless endpoint:

best_model.deploy(
    initial_instance_count=config['serve_initial_instance_count'],
    instance_type=config['serve_instance_type'],
    endpoint_name=config['serve_endpoint_name'],
    serverless_inference_config=serverless_inference_config,
    volume_size=config['serve_volume_size'],
    wait=True # Wait until the deployment finishes
)

----------!

AWS Lambda

The serverless endpoint deployed in the previous section is a great way to get started with serverless inference. However, it remains non-trivial for a client to make inference requests to the endpoint hosting our trained model. In this section, we will create a Lambda function serving as a doorman to the serverless endpoint. The Lambda function will be responsible for invoking the serverless endpoint, effectively managing the communication between any inference requests and the serverless endpoint.

Lambda Function

The Lambda function is defined in the lambda_function.py (link) module. The table below provides an overview of the key components of the Lambda function:

Section	Description
Function Overview	The `lambda_handler` function is the entry point for AWS Lambda execution. It processes the event data received when the function is invoked.
Event Object	The `event` is a JSON-formatted object provided by AWS Lambda. It contains data about the invocation, such as API Gateway request data, in the case of an API-triggered Lambda.
Context Parameter	The `context` parameter provides runtime information about the Lambda execution, such as execution deadline, function ARN, etc.
Key Libraries Used	boto3 (AWS SDK for Python)
Invocation Process	Extracts the payload from the `event`, invokes the SageMaker endpoint with the payload, and returns the response.
Error Handling	Implements error handling to manage potential issues during the invocation process.

The lambda_function.py module is the source code for the lambda function, which we will deploy in the next step. For more details, see the official documentations on building Lambda functions with Python.

Lambda Manager Class

The LambdaManager (see ?LambdaManager for details) class from the lambda_manager.py (link) module contains methods to create, deploy, update, and delete lambda functions using boto3.

To integrate AWS Lambda with our serverless model endpoint, we first establish an execution role, which we created in the Lambda Execution Role section. This role grants the necessary permissions for the Lambda function to interact with other AWS services, such as Amazon SageMaker:

lambda_manager = LambdaManager(
    lambda_client=lambda_boto3,
    iam_resource=iam_boto3
)

# Use the execution role we created for the lambda function
lambda_execution_role, exist = lambda_manager.create_iam_role_for_lambda(
    iam_role_name=config['lambda_execution_role_name']
)

2023-11-21 08:32:59,203 INFO src.lambda_manager: Found IAM role forecast-lambda-execution-role

Next, we prepare a deployment package, which includes the source code for the Lambda function. This package is created as a bytes object in memory for deployment:

deployment_package = lambda_manager.create_deployment_package(
    source_file=os.path.join(config['src_dir_path'], config['lambda_source_file']),
    destination_file=config['lambda_source_file']
)

type(deployment_package)

bytes

With the deployment package ready, we proceed to create and deploy the Lambda function. This involves specifying various parameters like function name, description, runtime, and the IAM role:

lambda_function_arn = lambda_manager.create_function(
    function_name=config['lambda_function_name'],
    function_description=config['lambda_function_description'],
    time_out=config['lambda_time_out'],
    python_runtime=config['lambda_python_runtime'],
    iam_role=lambda_execution_role,
    handler_name=config['lambda_handler_name'],
    deployment_package=deployment_package,
    publish=config['lambda_publish'],
    # The configuration structures the env_vars as a list of dicts, but the SDK expects a single dict of key-value pairs
    env_vars={env_key: env_value for dict_obj in config['lambda_env_vars']
                                 for env_key, env_value in dict_obj.items()}
)

2023-11-21 08:33:08,853 INFO src.lambda_manager: Function forecast-lambda is active with ARN arn:aws:lambda:us-east-1:722696965592:function:forecast-lambda

Before integrating our Lambda function with the REST API, we test the function with a sample payload to ensure that it is functioning as expected. The payload that the serve_entry.py expects is a json object with a body key, which is in and of itself a json object with two keys:
- periods: the number of periods to forecasts
- conf: the prediction interval coverage for the forecasts

response = lambda_manager.invoke_function(
    function_name=config['lambda_function_name'],
    payload={'body': json.dumps({'periods': '10', 'conf': '0.90'})},
    include_log=False
)

response_payload = json.loads(response['Payload'].read().decode('utf-8'))
predictions = json.loads(response_payload['body'])

pd.DataFrame.from_dict(predictions)

2023-11-21 08:33:38,048 INFO src.lambda_manager: Invoked function forecast-lambda

	date	lower_pi_0.9	predictions	upper_pi_0.9
0	2023-11-10	8442.032846	8799.959536	9173.061660
1	2023-11-17	8407.632972	8764.101170	9135.682966
2	2023-11-24	8180.724608	8533.211927	8900.887059
3	2023-12-01	8377.697623	8746.039429	9130.576101
4	2023-12-08	8570.751497	8954.925552	9356.319766
5	2023-12-15	8623.091041	9016.872044	9428.635402
6	2023-12-22	8017.558637	8390.324085	8780.420754
7	2023-12-29	7801.960859	8171.054973	8557.610142
8	2024-01-05	7836.116017	8213.105585	8608.231835
9	2024-01-12	7993.866235	8384.753272	8794.754048

REST API

In this section, we explore the integration of Amazon API Gateway with Lambda, a key component in handling requests to our serverless inference endpoint. Amazon API Gateway serves as the front-end interface for our Lambda function. This setup is crucial as it enables us to expose our backend model endpoint to external applications.

Through this integration, clients can seamlessly make inference requests, allowing for efficient and scalable interaction with our model hosted on AWS. The API Gateway acts not just as a mere conduit but also offers additional features like request routing, security, usage plan, and monitoring, thereby enhancing the overall functionality and reliability of the serverless architecture.

With API’s, we can also control how clients call an API, using IAM permissions, a Lambda authorizer, or an Amazon Cognito user pool.

Usage Plans

One of the key benefits of using Amazon API Gateway in conjunction with Lambda is the ability to specify usage plans. These plans are instrumental in managing how clients interact with our API.

Controlled Access: We utilize usage plans to dictate how our APIs are used, associating API keys with these plans to manage access frequency. This is especially beneficial for offering different access levels to various users.
Efficient Throttling and Quotas: Our usage plans include throttling rules to limit request numbers over set periods, along with quota limits. This approach ensures equitable resource use and maintains performance.
Customizability: We can tailor usage plans to meet the varying needs of our audience, balancing accessibility and resource management, whether for internal, partner, or commercial use.

In this project, we implement a simple usage plan with a single API key and a throttling rate of 10 requests per second. This plan is sufficient for our purposes, but we can easily expand it to include more API keys and additional throttling rules.

REST API Setup and Management

Using the RestApiManager class from the rest_api_manager.py (link) module, we streamline the creation and management of our REST API on Amazon API Gateway. This class encapsulates various steps required to set up and manage an API, ensuring a seamless and efficient process.

We begin by instantiating the RestApiManager class, specifying parameters like API name, base path, stage, and Lambda function name. These parameters define the basic structure of our API.
- Create REST API: Initializes a new API on Amazon API Gateway, laying the foundation for external applications to interact with our lambda function. Learn more about REST APIs in API Gateway.
- Get Root Resource ID: Retrieves the root resource ID of the API, which is crucial for constructing URL paths within our API. This will be needed to ultimately invoke the API for inference requests. Understand Resources and Methods in API Gateway
- Create Resource: Adds a new endpoint under the root resource, defining specific URL paths and their handling within the API. Create Resources and Methods.
- Create POST Method: Establishes a POST method for the new resource, including API key requirements and other configurations. We use a POST method since the client will be sending data to the Lambda function. Setting up POST Method in API Gateway.
- Setup Lambda Integration: Integrates the API with our AWS Lambda function, enabling the POST method to trigger the Lambda function, which invokes the backend inference endpoint. Integrate API with AWS Lambda.
- Deploy REST API: Makes the API publicly accessible through deployment, making it available to end users. Deploying Our API.
- Grant Permission to Lambda: Authorizes API Gateway to invoke our specified Lambda function, ensuring secure interaction between these two services. Manage Lambda Permissions.
- API Key and Usage Plan Setup: Creates API keys and usage plans for controlling access, quotas, and rate limits on the individual API key. API Keys and Usage Plans in API Gateway.

rest_api_manager = RestApiManager(
    api_name=config['api_gateway_api_name'],
    api_base_path=config['api_gateway_api_base_path'],
    api_stage=config['api_gateway_api_stage'], # Development stage
    lambda_function_name=config['lambda_function_name']
)

rest_api_manager.setup_rest_api(
    apiKeyRequired=config['api_gateway_api_key_required'],
    api_key_name=config['api_gateway_api_key_name'],
    enabled=config['api_gateway_enabled'],
    usage_plan_name=config['api_gateway_usage_plan_name']
)

2023-11-21 08:33:43,972 INFO src.rest_api_manager: Created REST API forecast-api with ID ho0bqqd0x1
2023-11-21 08:33:44,017 INFO src.rest_api_manager: Found root resource of the REST API with ID oxpzkbuc7c
2023-11-21 08:33:44,074 INFO src.rest_api_manager: Created resource forecast under root resource with ID 4ev4qp
2023-11-21 08:33:44,133 INFO src.rest_api_manager: Created POST method for resource 4ev4qp
2023-11-21 08:33:44,199 INFO src.rest_api_manager: Set up Lambda integration for POST method on resource 4ev4qp
2023-11-21 08:33:44,674 INFO src.rest_api_manager: Deployed REST API ho0bqqd0x1
2023-11-21 08:33:44,753 INFO src.rest_api_manager: Granted permission to let Amazon API Gateway invoke function arn:aws:lambda:us-east-1:722696965592:function:forecast-lambda from arn:aws:execute-api:us-east-1:722696965592:ho0bqqd0x1/*/POST/forecast
2023-11-21 08:33:44,807 INFO src.rest_api_manager: Created API key with ID vivx7v165i
2023-11-21 08:33:45,412 INFO src.rest_api_manager: Created usage plan with ID p75ul0
2023-11-21 08:33:45,781 INFO src.rest_api_manager: Added API key vivx7v165i to usage plan p75ul0
2023-11-21 08:33:45,782 INFO src.rest_api_manager: Finished setting up REST API

Invoke the REST API, if an api_key is required, then this method (i.e., invoke_rest_api) automatically adds the api_key to the header of the request sent to API Gateway:

payload = {'periods': '5', 'conf': '0.80'}

predictions = rest_api_manager.invoke_rest_api(
    payload=payload
)

pd.DataFrame.from_dict(predictions)

2023-11-21 08:36:24,683 INFO src.rest_api_manager: Constructed REST API base URL: https://ho0bqqd0x1.execute-api.us-east-1.amazonaws.com/dev/forecast
2023-11-21 08:36:25,138 INFO src.rest_api_manager: Invoked REST API ho0bqqd0x1 with payload {'periods': '5', 'conf': '0.80'} and API key vivx7v165i

	date	lower_pi_0.8	predictions	upper_pi_0.8
0	2023-11-10	8519.814962	8799.959536	9089.315693
1	2023-11-17	8485.098139	8764.101170	9052.278249
2	2023-11-24	8257.304785	8533.211927	8818.338150
3	2023-12-01	8457.695795	8746.039429	9044.213406
4	2023-12-08	8654.161291	8954.925552	9266.142490

That is it. We now have a fully functional REST API that can be used to generate forecasts.

Checkpoint VI

The final project directory should now resemble:

.
├── docker
│   ├── build_and_push.sh
│   ├── preprocess.Dockerfile
│   ├── preprocess.Dockerfile.dockerignore
│   ├── serve.Dockerfile
│   ├── serve.Dockerfile.dockerignore
│   ├── train.Dockerfile
│   └── train.Dockerfile.dockerignore
├── notebooks
│   ├── eda.ipynb
│   └── forecast.ipynb
├── poetry.lock
├── pyproject.toml
├── README.md
├── src
│   ├── config
│   │   └── main.yaml
│   ├── custom_utils.py
│   ├── lambda_function.py
│   ├── lambda_manager.py
│   ├── preprocess_entry.py
│   ├── rest_api_manager.py
│   ├── serve_entry.py
│   └── train_entry.py
└── tests
    └── __init__.py

Important: Clean-Up

To clean up the resources we created:

Remove the preprocessing and training images:

for image_tag in [train_image_tag, preprocess_image_tag, serve_image_tag]:
    ecr_boto3.batch_delete_image(
        repositoryName=config['ecr_repository'],
        imageIds=[{'imageTag': image_tag}]
    )

Delete model, serverless endpoint, and serverless endpoint configuration:

sm_boto3.delete_endpoint(EndpointName=config['serve_endpoint_name'])
sm_boto3.delete_endpoint_config(EndpointConfigName=config['serve_endpoint_name'])
sm_boto3.delete_model(ModelName=config['serve_model_name'])

{'ResponseMetadata': {'RequestId': '9e42a2af-c22d-4205-b467-9f4732f0f05b',
  'HTTPStatusCode': 200,
  'HTTPHeaders': {'x-amzn-requestid': '9e42a2af-c22d-4205-b467-9f4732f0f05b',
   'content-type': 'application/x-amz-json-1.1',
   'content-length': '0',
   'date': 'Tue, 21 Nov 2023 08:36:55 GMT'},
  'RetryAttempts': 0}}

Remove lambda function:

lambda_manager.delete_function(function_name=config['lambda_function_name'])

2023-11-21 08:36:58,437 INFO src.lambda_manager: Deleted function forecast-lambda

Clean up resources related to REST API:

rest_api_manager.cleanup()

2023-11-21 08:37:00,506 INFO src.rest_api_manager: Cleaning up resources created during the setup process
2023-11-21 08:37:00,507 INFO src.rest_api_manager: Rolling back created resources
2023-11-21 08:37:00,529 INFO src.rest_api_manager: Nothing to remove as the specified Lambda function does not exist
2023-11-21 08:37:00,811 INFO src.rest_api_manager: Deleted API key vivx7v165i from usage plan p75ul0
2023-11-21 08:37:00,870 INFO src.rest_api_manager: Deleted resource 4ev4qp
2023-11-21 08:37:01,122 INFO src.rest_api_manager: Deleted REST API ho0bqqd0x1
2023-11-21 08:37:01,466 INFO src.rest_api_manager: Deleted usage plan p75ul0
2023-11-21 08:37:01,684 INFO src.rest_api_manager: Deleted API key vivx7v165i

Close clients:

ecr_boto3.close()
sm_boto3.close()
apigateway_boto3.close()
lambda_boto3.close()

Putting it all together

After navigating through the intricacies of setting up IAM roles, configuring AWS resources, conducting exploratory data analysis, and training and deploying models using AWS Lambda and API Gateway, we have created a end-to-end machine learning pipeline.

For a comprehensive view of the complete process, all source files are available at this GitHub repository. This repository serves as a practical blueprint, illustrating how each component integrates into an end-to-end machine learning solution for time series forecasting using Amazon SageMaker and associated services.

Resources

FastAPI and Serverless Deployment

FastAPI Advanced Events: Detailed guidance on advanced usage of FastAPI, including event handling.
R Serving with FastAPI - Example: A practical example of serving R models with FastAPI.
SageMaker Serverless Inference Documentation: Python API.
Amazon SageMaker Inference Code: Guidance on writing inference code for SageMaker models.

SageMaker and AWS Services

SageMaker Python SDK: Python API for SageMaker.
Boto3 API Gateway Documentation: Python API for API Gateway.
Boto3 Lambda Documentation: Python API for Lambda.
Invoking Serverless Endpoints: Instructions on how to invoke SageMaker serverless endpoints.
Adapting Docker Containers for SageMaker: Learn how to adapt your Docker containers for SageMaker for both training and inference.
Creating Docker Containers for SageMaker: Learn how to create Docker containers for SageMaker for both training and inference.
AWS Lambda Python Code Examples: Various Python examples for AWS Lambda functions.
Calling SageMaker Endpoints via API Gateway and Lambda: A blog post illustrating the integration of SageMaker, API Gateway, and Lambda.
API Gateway and Lambda Integration: Example code for integrating API Gateway with Lambda.

IAM and Security

IAM Policy Reference: A comprehensive reference for IAM policies for all AWS services.
IAM Policy Grammar: Understand the grammar and structure of IAM policies.
Lambda Access Control: Information on access control for Lambda functions.

Time Series Analysis and Forecasting

Rob J Hyndman’s Blog: Insights and tutorials on time series analysis from a leading expert.
Forecasting: Principles and Practice: A comprehensive online textbook on forecasting methods.
Time Series Analysis: With Applications in R: A comprehensive, theoretically-rigorous textbook on time series analysis.

Python Time Series Libraries

sktime: A Unified Interface for Machine Learning with Time Series: An open-source Python library for time series analysis.
statsforecast: Fast Univariate Time Series Forecasting: A Python library for efficient forecasting of univariate time series.
statsmodels: Time Series Analysis: Python statistical library that provides classes and functions for time series analysis.
pmdarima: ARIMA estimators for Python: A Python library for auto-regressive integrated moving average models.
