The Central Limit Theorem and Power Simulation in R

The following packages will be used in this post:

Show code

library(paramtest)
library(lattice)
library(knitr)
library(kableExtra)
library(plyr)
library(dplyr)
library(ggplot2)
library(MASS)
library(plotly)

Central Limit Theorem

The central limit theorem, crudely speaking, states that— if there is a distribution with expected value given by the mean $\mu$ and finite variance $\sigma^2$ and we take sufficiently large random samples from this distribution with replacement, then the distribution of the sample means will be approximately normally distributed. This will hold true regardless of whether the source or “parent” distribution is normal, conditional on the fact that the sample size is sufficiently large (say, n > 30). In this post, we demonstrate two characteristics of the CLT:

The mean of the distribution of sample means, $\mu_{\bar{x}}$ should converge towards the mean of the “parent population,” the population from which the random samples are drawn, as $n \to \infty$.
The standard deviation of the distribution of sample means, also known as the standard error of the mean, $\sigma_{\bar{x}}= \frac{\sigma}{\sqrt{n}}$, should become smaller as $n \to \infty$. In other words, the spread of the distribution of sample means should decrease as sample size, n, increases.

Here, we examine a poisson distribution $X\sim pois(220/24)$:

Show code

# Lambda is the number of geese that arrive per hour
lambda <- 220 / 24
# Number of random samples to be drawn
numsim <- 10000
# Initialize variables
mean5 <- rep(0, numsim)
mean15 <- rep(0, numsim)
mean30 <- rep(0, numsim)
mean100 <- rep(0, numsim)
mean200 <- rep(0, numsim)
# Loop for simulating
for (i in 1:numsim) {
  # sample means
  mean5[i] <- mean(rpois(5, lambda))
  mean15[i] <- mean(rpois(15, lambda))
  mean30[i] <- mean(rpois(30, lambda))
  mean100[i] <- mean(rpois(100, lambda))
  mean200[i] <- mean(rpois(200, lambda))
}
# Create five data frames for these sampling distributions with varying sample sizes
# Create a variable "sample_size" used as an identifier
n_5 <- data.frame(sample_size = as.factor(rep(5, 10000)), sample_means = mean5)
n_15 <- data.frame(sample_size = as.factor(rep(15, 10000)), sample_means = mean15)
n_30 <- data.frame(sample_size = as.factor(rep(30, 10000)), sample_means = mean30)
n_100 <- data.frame(sample_size = as.factor(rep(100, 10000)), sample_means = mean100)
n_200 <- data.frame(sample_size = as.factor(rep(200, 10000)), sample_means = mean200)
# Combine into a single data frame
# The function rbind() combines data frames by rows
sampling_distributions <- rbind(n_5, n_15, n_30, n_100, n_200)

The first characteristic of the CLT states that $\mu_{\bar{x}}$ should converge towards $\lambda= 9.1667$ as $n \to \infty$. Let’s check:

Show code

# Using tapply
round(tapply(
  sampling_distributions$sample_means,
  sampling_distributions$sample_size, mean
), digits = 5)

      5      15      30     100     200
9.16998 9.15055 9.16974 9.16441 9.17096

As can be seen, $\mu_{\bar{x}}$ gets closer and closer to $\lambda= 9.1667$ as sample size becomes larger. For the second characteristic, let’s examine the overlay density plots of these sampling distributions:

Show code

# Using ggplot()
ggplot(
  data = sampling_distributions,
  mapping = aes(x = sample_means)
) +
  geom_density(aes(fill = sample_size, color = sample_size), alpha = 0.2) +
  geom_vline(xintercept = lambda, linetype = "dashed") +
  ggtitle("Density Plot of Sampling Distributions") +
  xlab("Distributions of Sample Means") +
  ylab("Density") +
  theme(
    panel.background = element_rect(fill = "azure2"),
    panel.grid = element_blank()
  )

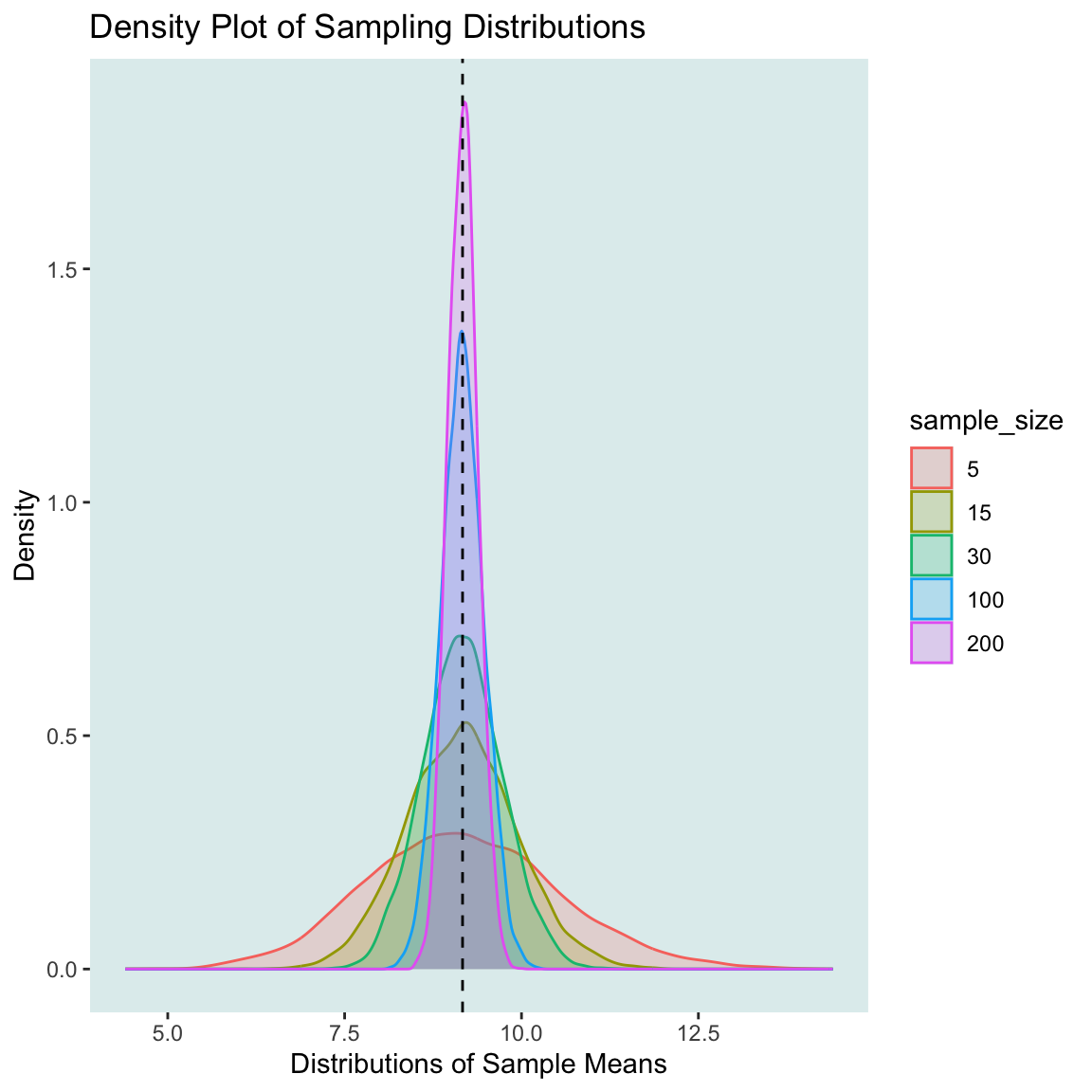

The dashed line in the figure above indicates $\lambda= 9.1667$. Evidently, as sample size gets larger, the spread of the distribution of sample means gets smaller. We have a visual confirmation of the CTL that standard error of the mean should become smaller as $n \to \infty$. Below, we compute the standard deviations of these distributions:

Show code

# Using tapply
round(tapply(sampling_distributions$sample_means, sampling_distributions$sample_size, sd), digits = 5)

      5      15      30     100     200
1.35926 0.77799 0.55530 0.30251 0.21138

Now, we have a numeric proof of this characteristic as well. Additionally, we may also compare these simulated values to our analytical solutions. We know that the standard deviation of a poisson distribution is simply the square root of the mean, $\lambda$. Before we run any simulations, we may compute the standard errors of the mean, given a sample size, n, analytically, using the formula: $\sigma_{\bar{x}}= \frac{\sigma}{\sqrt{n}}$.

Show code

# sd of the distribution of a random sample n=5
sd_5 <- sqrt(lambda) / sqrt(5)
# sd of the distribution of a random sample n=15
sd_15 <- sqrt(lambda) / sqrt(15)
# sd of the distribution of a random sample n=30
sd_30 <- sqrt(lambda) / sqrt(30)
# sd of the distribution of a random sample n=100
sd_100 <- sqrt(lambda) / sqrt(100)
# sd of the distribution of a random sample n=200
sd_200 <- sqrt(lambda) / sqrt(200)
# store in one vector
se <- c(sd_5, sd_15, sd_30, sd_100, sd_200)
names(se) <- c("5", "15", "30", "100", "200")
se

        5        15        30       100       200
1.3540064 0.7817360 0.5527708 0.3027650 0.2140872

Here, we see that our simulated values match pretty well with our analytical solutions.

Multivariate Normal Distribution

When two random variables $X_{1}$ and $X_{2}$ have a bivariate normal distribution, we can express them using matrix notations.

A random $2 \times 1$ column vector X and its mean:

\[\begin{align*} X &= \begin{pmatrix} X_{1}\\ X_{2} \end{pmatrix} \\ \mu &= \begin{pmatrix} \mu_{X_{1}}\\ \mu_{X_{2}} \end{pmatrix} \end{align*}\]

A $2 \times 2$ covariance matrix:

\[\begin{align*} \sum &= \begin{pmatrix} Var_{X_{1}} & Cov_{X_{2}X_{1}}\\ Cov_{X_{1}X_{2}} & Var_{X_{2}} \end{pmatrix} \\ &= \begin{pmatrix} \sigma^2_{X_{1}} & \rho\cdot\sigma_{X_{2}}\cdot\sigma_{X_{1}} \\ \rho\cdot \sigma_{X_{1}}\cdot\sigma_{X_{2}} & \sigma^2_{X_{2}} \end{pmatrix} \end{align*}\]

Then, we say $X \sim N(\mu,\sum)$. To sample from a multivariate normal distribution in R, we use the following user-defined function:

Show code

# Define a function for generating random multivariate normals
rmultnorm <- function(n, mu, vmat, tol = 1e-07) {
  p <- ncol(vmat)
  if (length(mu) != p) {
    stop("alright, alright, alright, mu vector is the wrong length")
  }
  if (max(abs(vmat - t(vmat))) > tol) {
    stop("vmat not symmetric")
  }
  vs <- svd(vmat)
  vsqrt <- t(vs$v %*% (t(vs$u) * sqrt(vs$d)))
  ans <- matrix(rnorm(n * p), nrow = n) %*% vsqrt
  ans <- sweep(ans, 2, mu, "+")
  dimnames(ans) <- list(NULL, dimnames(vmat)[[2]])
  return(ans)
}

We now have a function for genearting random multivariate normals. If we would like simulate observations from a bivariate normal distribution with mean 100, variance 14. And if we wish to specify a moderately negative association based on Cohen (1988) and its convention for interpreting the strength of the correlation coefficient, we need to find $X_{1}$ and $X_{2}$ such that their correlation coefficient, $\rho$, is $\approx$ -0.3:

\[\begin{align*} \frac{Cov_{X_{1}X_{2}}}{\sigma_{X_{1}}\sigma_{X_{2}}}&=-0.3\\ Cov_{X_{1}X_{2}}&=\sigma_{X_{1}}\sigma_{X_{2}}\cdot(-0.3)\\ Cov_{X_{1}X_{2}}&=-0.3\sqrt{14}\sqrt{14}\\ Cov_{X_{1}X_{2}}&\approx-4.2 \end{align*}\]

We modify the inputs of the function defined above:

Show code

# Sample size
n <- 100
# Mean Vector
mean <- c(100, 100)
# Variance
var_1 <- 14
var_2 <- var_1
# Covariance
cov <- -0.3 * sqrt(14) * sqrt(14)
# Generate two normal random variables with rho = -0.3
set.seed(12)
moderate_negative <- rmultnorm(n, mean, matrix(c(var_1, cov, cov, var_2), nrow = 2))

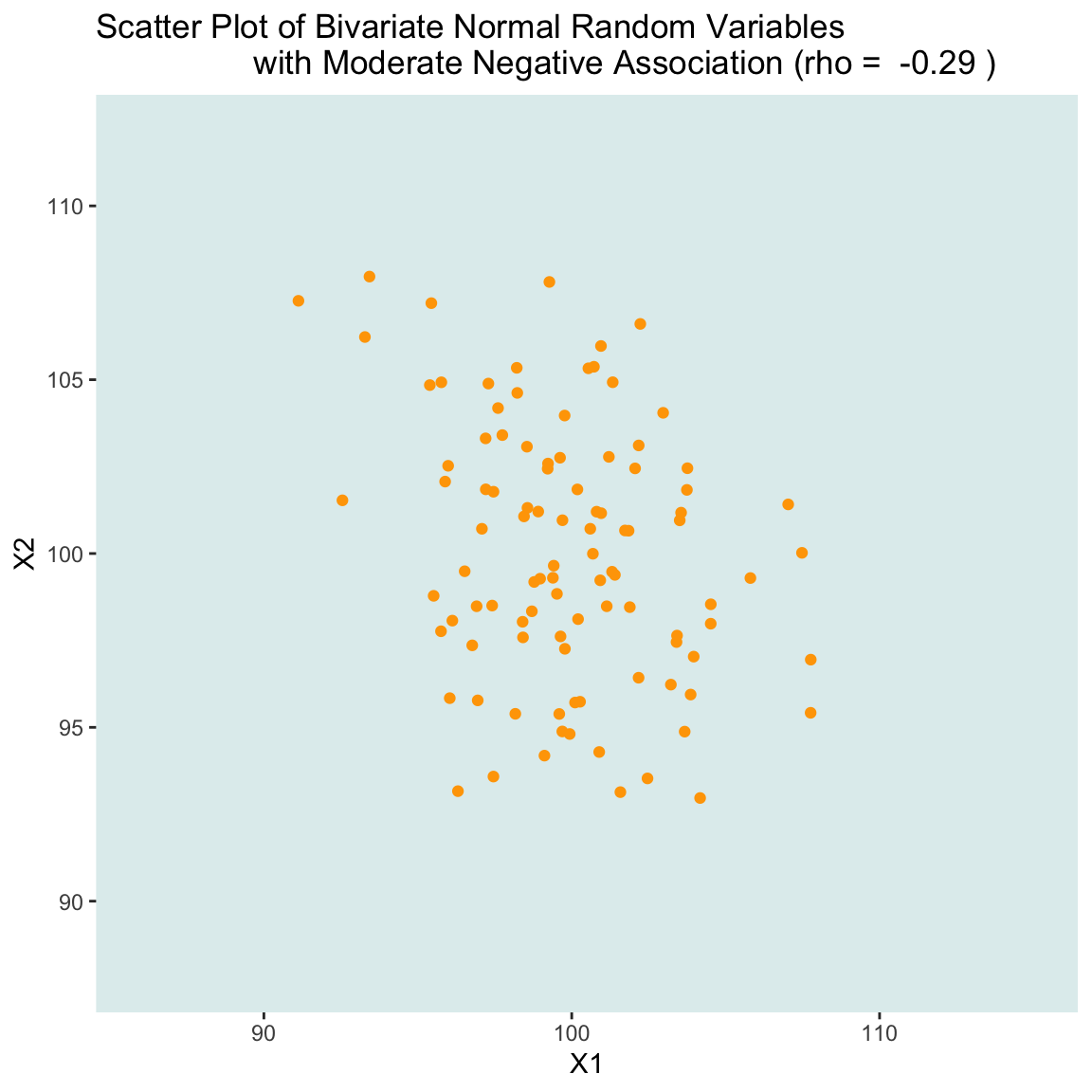

Here is a scatter plot on the xy-plane:

Show code

# Using ggplot()
ggplot(
  data = data.frame(moderate_negative),
  mapping = aes(
    x = moderate_negative[, 1],
    y = moderate_negative[, 2]
  )
) +
  geom_point(color = "orange") +
  xlim(c(86, 115)) +
  ylim(c(88, 112)) +
  ggtitle(
    paste(
      "Scatter Plot of Bivariate Normal Random Variables
                 with Moderate Negative Association (rho = ",
      round(cor(moderate_negative[, 1], moderate_negative[, 2]), digits = 2),
      ")"
    )
  ) +
  xlab("X1") +
  ylab("X2") +
  theme(
    panel.background = element_rect(fill = "azure2"),
    panel.grid = element_blank()
  )

Here’s a 3D plot of the joint probability density function of the two random variables:

Show code

# Bandwidth
# Using a rule-of-thumb for choosing the bandwidth of a Gaussian kernel density estimator
bw_vector <- c(bandwidth.nrd(moderate_negative[, 1]), bandwidth.nrd(moderate_negative[, 2]))
bw_moderate_negative <- mean(bw_vector)
# Using the kde2d() function from the MASS package
# kde2d() is used for 2d kernel density estimation
joint_pdf <- kde2d(x = moderate_negative[, 1], y = moderate_negative[, 2], h = bw_moderate_negative)
# Using plot_ly() from the plotly graphics library
# the pipe operator %>% will forward the result of an expression into the next function call
joint_pdf2d <- plot_ly(x = joint_pdf$x, y = joint_pdf$y, z = joint_pdf$z)
joint_pdf2d <- joint_pdf2d %>% layout(title = "Bivariate Density")
joint_pdf2d <- joint_pdf2d %>% add_surface()
joint_pdf2d

As can be seen, when $\rho$ is negative, the bell-shaped surface becomes flattened on a negative sloping line extending out towards the top left and bottom right corners. So for $\rho < 0$, X1 varies negatively with X2 (X2 is denoted as Y in the figure above).

To simulate observations from a bivariate normal distribution with a strong negative association, say, $\rho = -0.8$, we again modify the inputs to the function we defined in the beginning. Here are the scatter plot and the plot of their joint probability function:

Show code

# Sample size
n <- 100
# Mean Vector
mean <- c(100, 100)
# Variance
var_1 <- 14
var_2 <- var_1
# Covariance
cov <- -0.8 * sqrt(14) * sqrt(14)
# Generate two normal random variables with rho = -0.8
set.seed(77)
strong_negative <- rmultnorm(n, mean, matrix(c(var_1, cov, cov, var_2), nrow = 2))

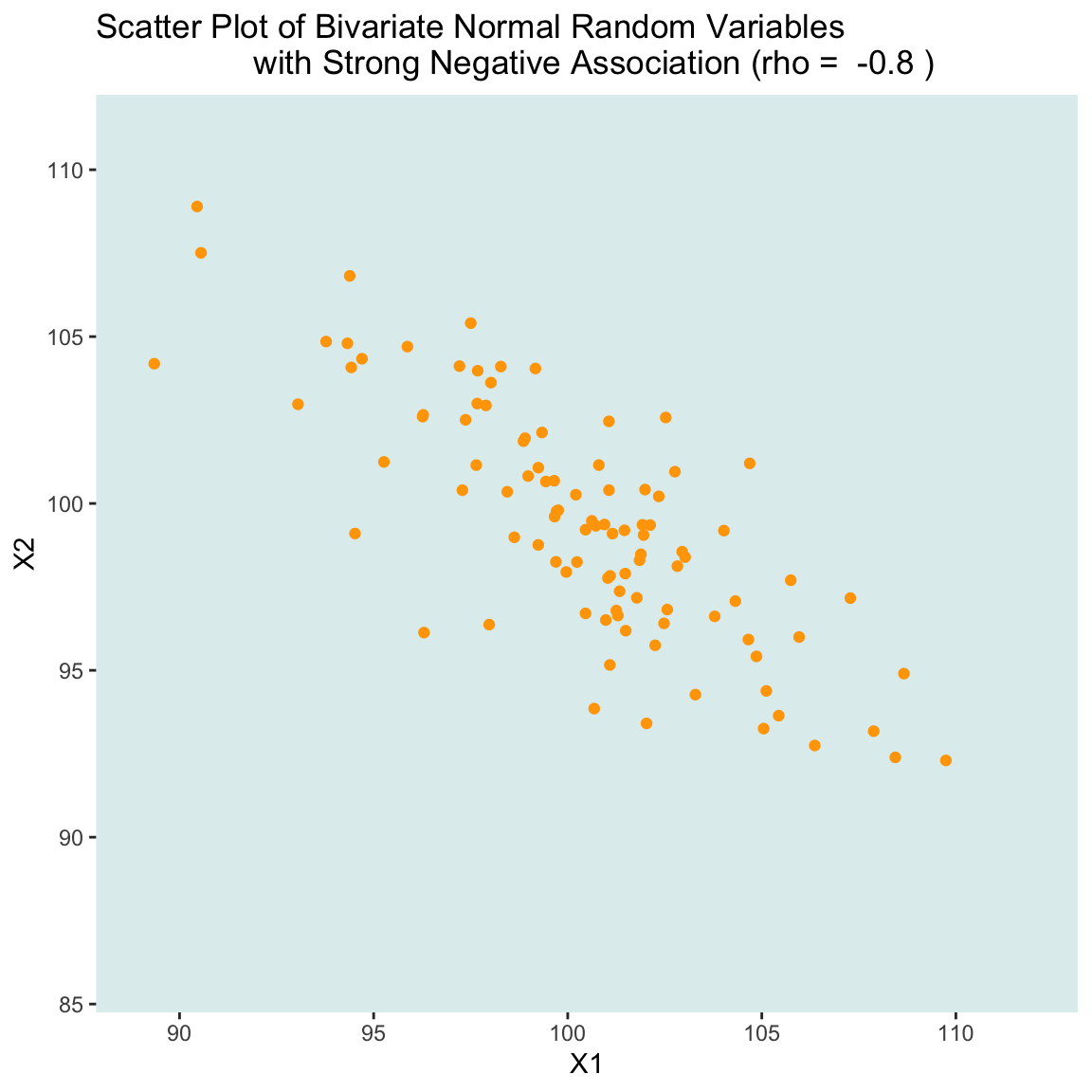

Show code

# Using ggplot()
ggplot(
  data = data.frame(strong_negative),
  mapping = aes(
    x = strong_negative[, 1],
    y = strong_negative[, 2]
  )
) +
  geom_point(color = "orange") +
  xlim(c(89, 112)) +
  ylim(c(86, 111)) +
  ggtitle(
    paste(
      "Scatter Plot of Bivariate Normal Random Variables
                 with Strong Negative Association (rho = ",
      round(cor(strong_negative[, 1], strong_negative[, 2]), digits = 2),
      ")"
    )
  ) +
  xlab("X1") +
  ylab("X2") +
  theme(
    panel.background = element_rect(fill = "azure2"),
    panel.grid = element_blank()
  )

Show code

# Bandwidth
bw_vector <- c(bandwidth.nrd(strong_negative[, 1]), bandwidth.nrd(strong_negative[, 2]))
bw_strong_negative <- mean(bw_vector)
# 2d kernel density estimation
joint_pdf <- kde2d(x = strong_negative[, 1], y = strong_negative[, 2], h = bw_strong_negative)
# Using plot_ly()
joint_pdf2d <- plot_ly(x = joint_pdf$x, y = joint_pdf$y, z = joint_pdf$z)
joint_pdf2d <- joint_pdf2d %>% layout(title = "Bivariate Density")
joint_pdf2d <- joint_pdf2d %>% add_surface()
joint_pdf2d

Simulating Power

There is a variety of perspectives on the definition of power. Simply put, power is the probability of avoiding a Type II error, according to Neil Weiss in Introductory Statistics. In the section below we explore the concept of power by examining a two-way ANOVA with interaction. Note that for simplicity, I used arbitrarily picked values for the model instead of real empirical data. In the context of a two-way ANOVA with interaction, we could interpret power as the probability that a test of significance will pick up on an effect that is present.

Show code

# Define a function for a two-way anova model with interaction
two_way_anova_interaction_regression <- function(n, b0, b1, b2, b3,
                                                 x1_mean = 0, x1_sd = 1, err_mean = 0, err_sd = 1) {
  # x1 draws n values from a normal distribution with a mean of 0 & sd of 1
  # x2 draws integers btw 0 to 1, n times (i.e., n numbers of either 0 or 1)
  x1 <- rnorm(n, mean = x1_mean, sd = x1_sd)
  x2 <- sample(0:1, n, replace = TRUE)

  # y is a linear combination of x1 & x2 multiplied by coefficients/effect sizes
  # the last term is the error term-- i.e. the unexplained portion of y
  y <- b0 + (b1 * x1) + (b2 * x2) + (b3 * x1 * x2) + rnorm(n, mean = err_mean, sd = err_sd)

  # regression model
  anova_model <- lm(y ~ x1 * x2)
  summary(anova_model)

  # store model outputs
  output <- summary(anova_model)$coefficients
  coeffs <- output[, 1]
  p_values <- output[, 4]
  r_sqr <- summary(anova_model)$r.squared

  # output
  results <- c(coeffs, p_values, r_sqr)
  names(results) <- c(
    "$\\beta_{0}$", "$\\beta_{1}$", "$\\beta_{2}$",
    "$\\beta_{3}$", "$\\beta_{0}$_pvalue",
    "$\\beta_{1}$_pvalue", "$\\beta_{2}$_pvalue",
    "$\\beta_{3}$_pvalue", "$r^2$"
  )
  return(results)
}

Let’s try using this function:

Show code

# Using arbitrarily picked values
anova_model <- two_way_anova_interaction_regression(n = 100, b0 = 0, b1 = 0.2, b2 = 0.4, b3 = 0.5)
# Generate table using kable () function from the knitr package
kable(anova_model, caption = "Two-way ANOVA Regression Model with Interaction") %>%
  kable_styling(position = "center")

Two-way ANOVA Regression Model with Interaction
	x
$\beta_{0}$	0.0310109
$\beta_{1}$	0.2611402
$\beta_{2}$	0.5979107
$\beta_{3}$	0.3640547
$\beta_{0}$_pvalue	0.8446025
$\beta_{1}$_pvalue	0.1368724
$\beta_{2}$_pvalue	0.0042647
$\beta_{3}$_pvalue	0.1080374
$r^2$	0.2291234

Now, we run 1000 simulations of the model, finding the coefficients and their associating p-values for each iteration. The output would be a data frame, with one row per simulation:

Show code

# Number of simulations
num_sims <- 1000
# Using a function called ldply() from the plyr package by Hadley Wickham
# ldply () applies function for each element of a list then combine results into a data frame.
power_simulations <- ldply(1:num_sims, two_way_anova_interaction_regression,
  n = 100, b0 = 0, b1 = 0.2, b2 = 0.4, b3 = 0.5
)
# First 5 rows
kable(power_simulations[1:5, ], caption = "Two-way ANOVA Regression Model with Interaction") %>%
  kable_styling(position = "center")

Two-way ANOVA Regression Model with Interaction
$\beta_{0}$	$\beta_{1}$	$\beta_{2}$	$\beta_{3}$	$\beta_{0}$_pvalue	$\beta_{1}$_pvalue	$\beta_{2}$_pvalue	$\beta_{3}$_pvalue	$r^2$
-0.1657905	0.1852724	0.7968441	0.5459245	0.4342815	0.2469565	0.0103175	0.0136621	0.4588430
-0.1945950	0.2394697	0.7110830	0.3147623	0.5081150	0.0582744	0.0991120	0.1033851	0.3969188
-0.7726047	0.5142571	0.8882506	0.2458852	0.0712582	0.0000984	0.1898985	0.2411440	0.5116927
1.3787538	-0.1250316	-1.2926884	0.8758351	0.0884618	0.5130762	0.1906276	0.0003018	0.6237839
0.2492963	0.1122680	-0.2806965	0.7228013	0.7372446	0.4271540	0.7963389	0.0010111	0.7472213

We can estimate power by finding the proportion of p-values that are significant. We are primarily interested in the p-value for the interaction effect, $\beta_{3}$. We use a logical expression to find out whether the p-values of $\beta_{3}$ is less than .05. This would return a logical vector of TRUEs and FALSEs. We then sum this vector (TRUE gets counted as 1 & FALSE as 0). Finally, we divide this value by the total number of simulations, 1000, to get the proportion:

Show code

# Estimating Power
power <- sum(power_simulations[[8]] < .05) / nrow(power_simulations)
cat(power)

0.67

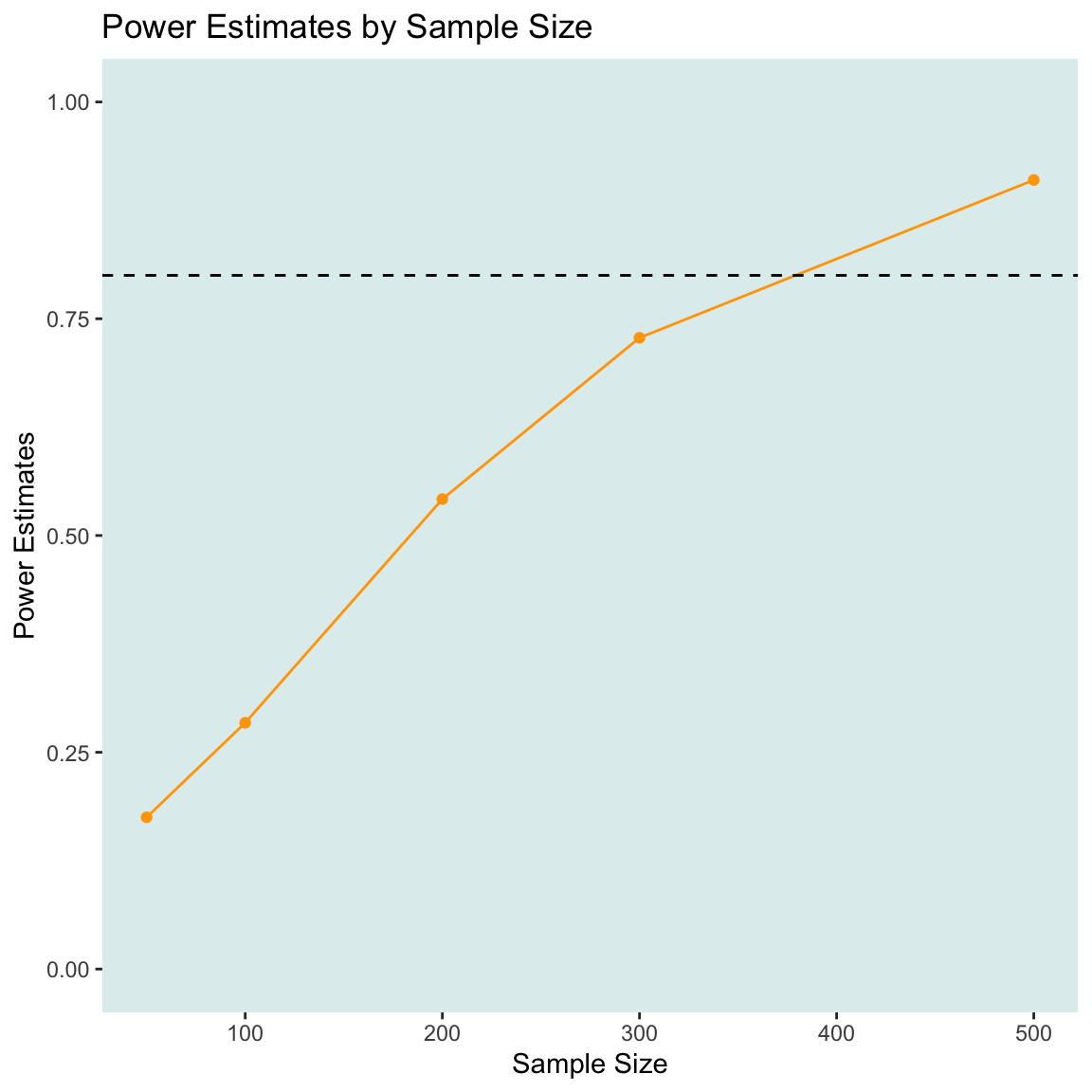

We could tweak the parameters to see how it affects our power estimate. For instance, we could investigate what happens when we increase sample sizes for x1 and x2:

Show code

# Create a vector of sample sizes ranging from 50 to 500
sample_sizes <- c(50, 100, 200, 300, 500)
# Initualize variable
results <- list()
# For Loop
for (val in sample_sizes) {
  # cycle through each value in "sample_sizes" and sets val to be that value
  # then pass that value to the simulation function as the sample size n
  power_simulations <- ldply(1:1000, two_way_anova_interaction_regression,
    n = val, b0 = 0, b1 = 0.3, b2 = 0.2, b3 = 0.3
  )

  # create new variable called n in the output data frame "results"
  # this variable functions as an indentifier
  power_simulations$n <- as.factor(val)


  # rbind() combines data frames by rows
  # notice that the first argument "results" in rbind() is an empty list when val=50
  # after each cycle, this dataframe gets 1000 more rows added to it
  # in the end we should have a single data frame with 5000 rows as there are five values in "sample_sizes"
  results <- rbind(results, power_simulations)
}

We could examine the results using a table and a plot:

Show code

# Split results into five individual data frames using the variable "n" as the identifier
list_of_results <- split(results, results[[10]])
# Find the power estimates associated with each sample size
power_n_50 <- sum(list_of_results[["50"]][[8]] < .05) / nrow(list_of_results[["50"]])
power_n_100 <- sum(list_of_results[["100"]][[8]] < .05) / nrow(list_of_results[["100"]])
power_n_200 <- sum(list_of_results[["200"]][[8]] < .05) / nrow(list_of_results[["200"]])
power_n_300 <- sum(list_of_results[["300"]][[8]] < .05) / nrow(list_of_results[["300"]])
power_n_500 <- sum(list_of_results[["500"]][[8]] < .05) / nrow(list_of_results[["500"]])
# Store all power estimates in one single vector
power_estimates <- c(power_n_50, power_n_100, power_n_200, power_n_300, power_n_500)
# Create data frame
power_table <- data.frame(
  "Sample Size" = sample_sizes,
  "Power Estimate" = power_estimates
)
# Generate table using kable () function from the knitr package
kable(power_table, caption = "Power Estimates by Sample Size") %>%
  kable_styling(position = "center")

Power Estimates by Sample Size
Sample.Size	Power.Estimate
50	0.175
100	0.284
200	0.542
300	0.728
500	0.910

Show code

# Using ggplot()
ggplot(
  data = power_table,
  mapping = aes(x = Sample.Size, y = Power.Estimate)
) +
  geom_point(color = "orange") +
  geom_line(color = "orange") +
  geom_hline(yintercept = 0.8, linetype = "dashed") +
  ylim(c(0, 1)) +
  ggtitle("Power Estimates by Sample Size") +
  xlab("Sample Size") +
  ylab("Power Estimates") +
  theme(
    panel.background = element_rect(fill = "azure2"),
    panel.grid = element_blank()
  )

As can be seen, our power estimates increase as sample size increases. If we take 0.8 as the rough rule of thumb of desired level of power, then a sample size of $\approx350$ would yield us that level of power given the set of parameters I chose.
